TEFCOLD MDCB3750HB Multideck

Product description

  • Tilting function for better product display
  • Can be multiplexed with kit (POA)
  • Internal vertical and horizontal LED light
  • Stainless steel bumper bars
  • Ticket strip and acrylic front riser as standard
  • Temperature Class 3M1
  • Can be multiplexed – Create uninterrupted continuous line

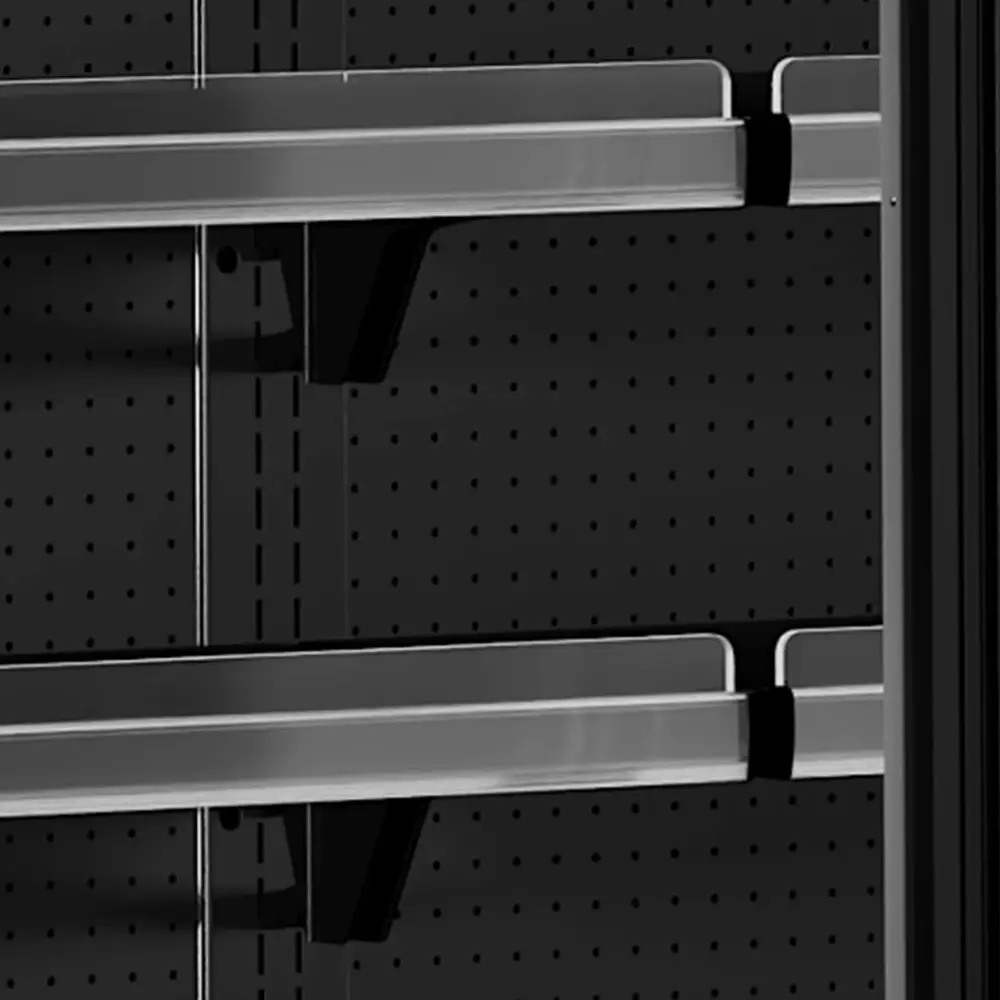

  • Adjustable extra deep shelves to maximise capacity
  • Energy saving variable speed compressor
  • EU Energy Class B
  • Solid 40 mm endwalls with mirrored interior
  • Controller with Bluetooth and NFC connectivity
£0.00 +vat
RRP: £0
Product total
Options total
Grand total
- +
Energy Arrow

Brand:

SKU: 71870

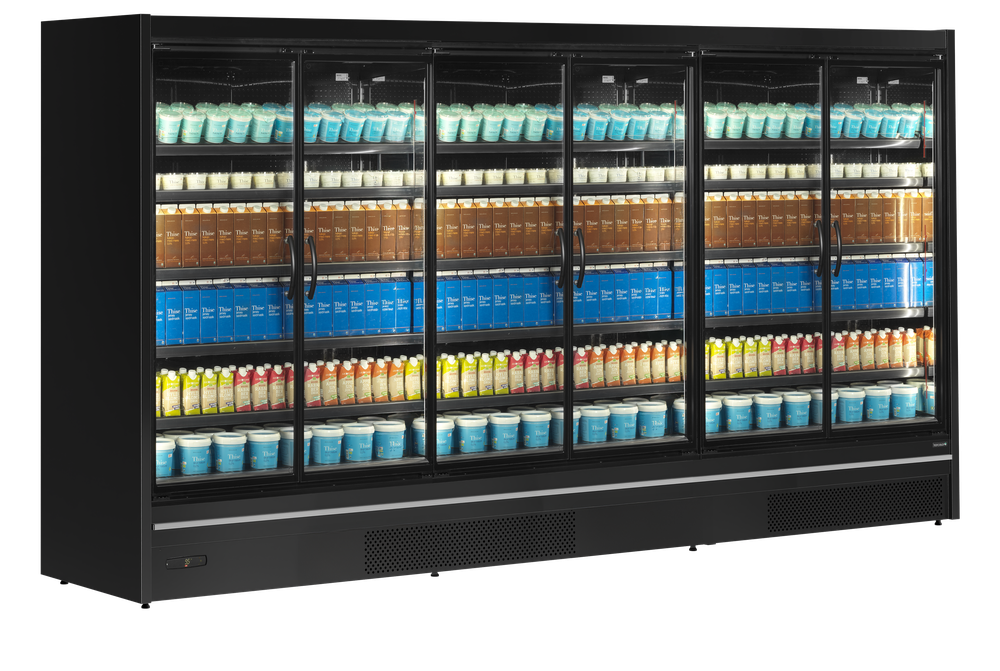

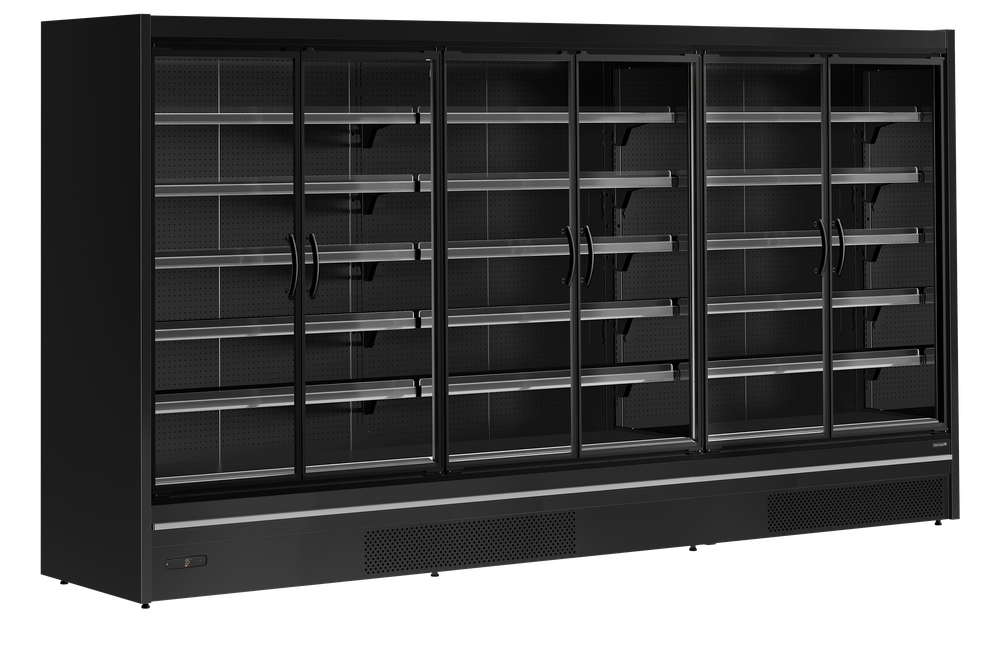

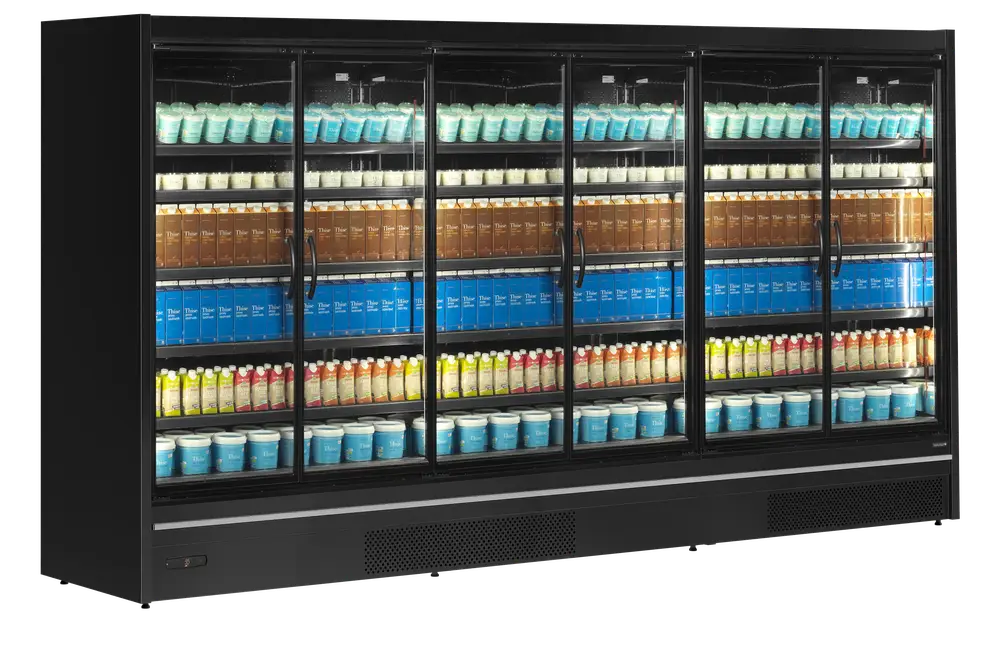

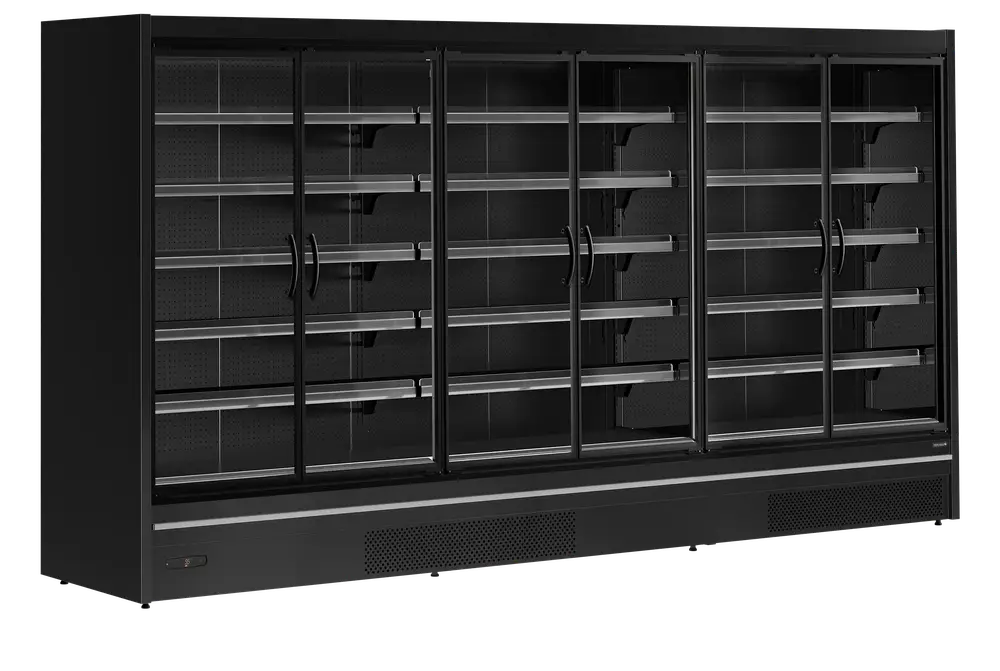

TEFCOLD MDCB3750HB Multideck
TEFCOLD MDCB3750HB Multideck - Image 2
TEFCOLD MDCB3750HB Multideck - Image 3
TEFCOLD MDCB3750HB Multideck - Image 4

Multideck with deep shelves for maximum capacity

The MDCB range of multideck coolers is designed for retail settings. It has temperature class 3M1, while boasting of a low-energy and low-noise cooling system. It offers great storage and display space with glass doors, adjustable shelves that can be tilted for a better product presentation, as well as vertical and horizontal LED lighting. The MDCB is available in several sizes.

Product description

Downloads

Spare Parts List
User Manual
Data Sheet

Measures and Content

Temperature Range: -1 to +5 °C
Climate Class: 3
Gross / Net Weight: 800 / 760 kg
Gross / Net Volume: 3686 / 3285 l
Max Ambient: +25°C, 60% RH
Total Display Area: 5.4 m² m²

Dimensions

Internal Dimension (WxDxH): 3750 x 650 x 1512 mm
External Dimension (WxDxH): 3830 x 1005 x 2100 mm
Packed Dimension (WxDxH): 3950 x 1105 x 2400 mm

Cooling and Functions

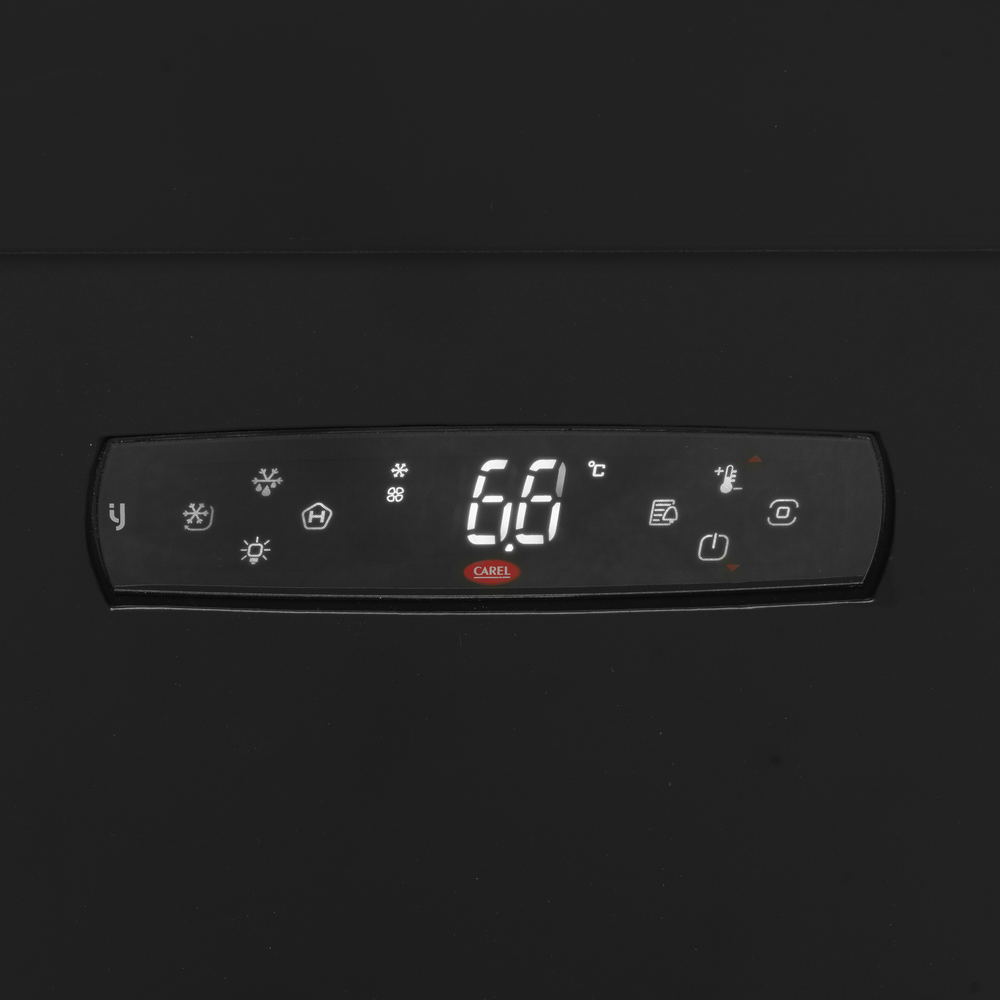

Type of Controller: Electronic
Type of Defrost: Automatic
Refrigerant: R290
Refrigerant Charge: 120 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 11.61 kWh/24h
Annual Energy Consumption: 4237.65 kWh/year m³
EEI: 15.8 %
Input Power: 1700 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 59 dB(A)

Design and Material

Shelf Color: Black
Shelf Dimensions: 1250×600
Max load on Shelves: 120 kg/m²
Feet / Legs: Adjustable Feet
Exterior Finish: Black RAL9005
Interior Finish: Black RAL9005
Interior Light: Yes
If you have any questions about the TEFCOLD MDCB3750HB Multideck then please get in touch.
