TEFCOLD Atom Maxi C3DBB Glass Door Merchandiser

Product description

  • Great product presentation
  • Black interior and exterior
  • Low energy consumption
  • Self-closing glass doors
  • Double glazed tempered glass

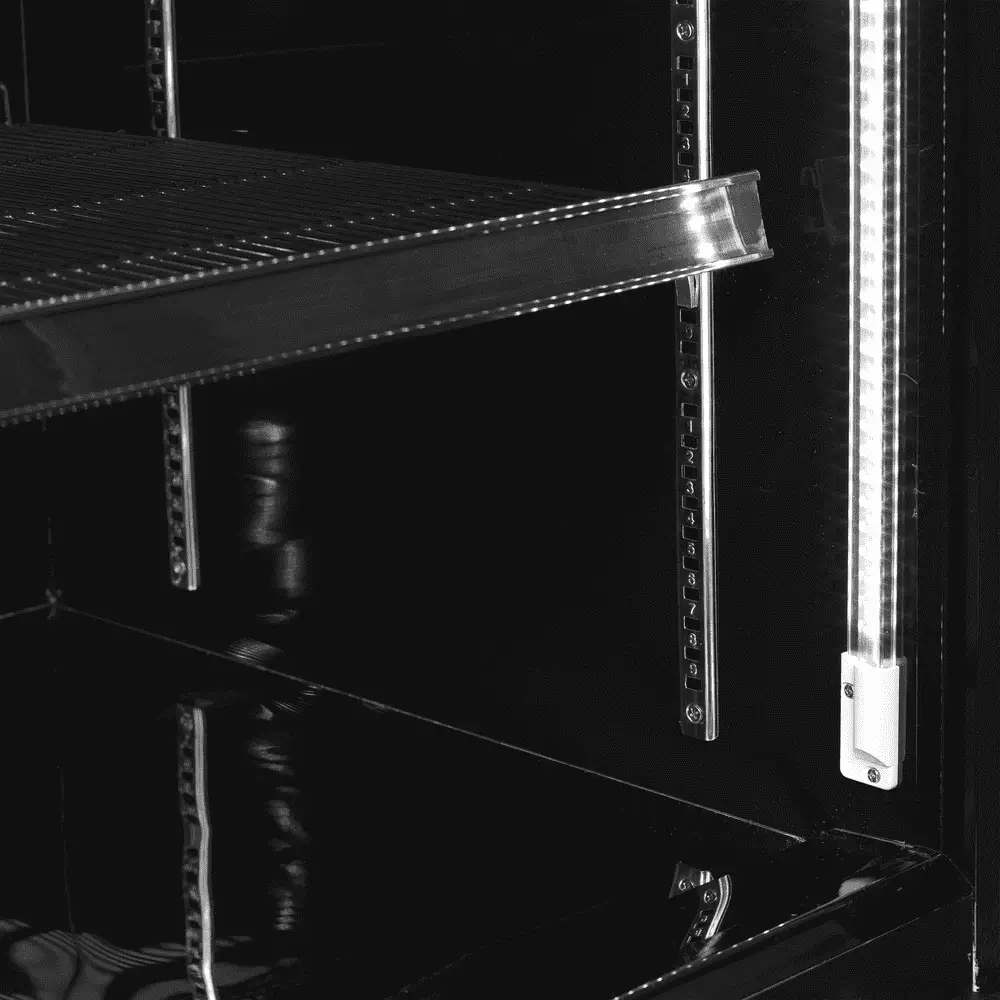

  • Internal vertical LED light
  • Ventilated cooling
  • Adjustable shelves (split level)
  • Stainless steel base with mirror effect

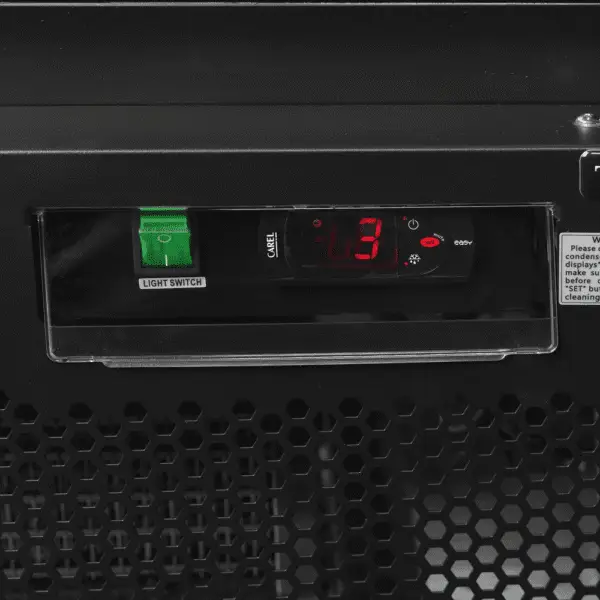

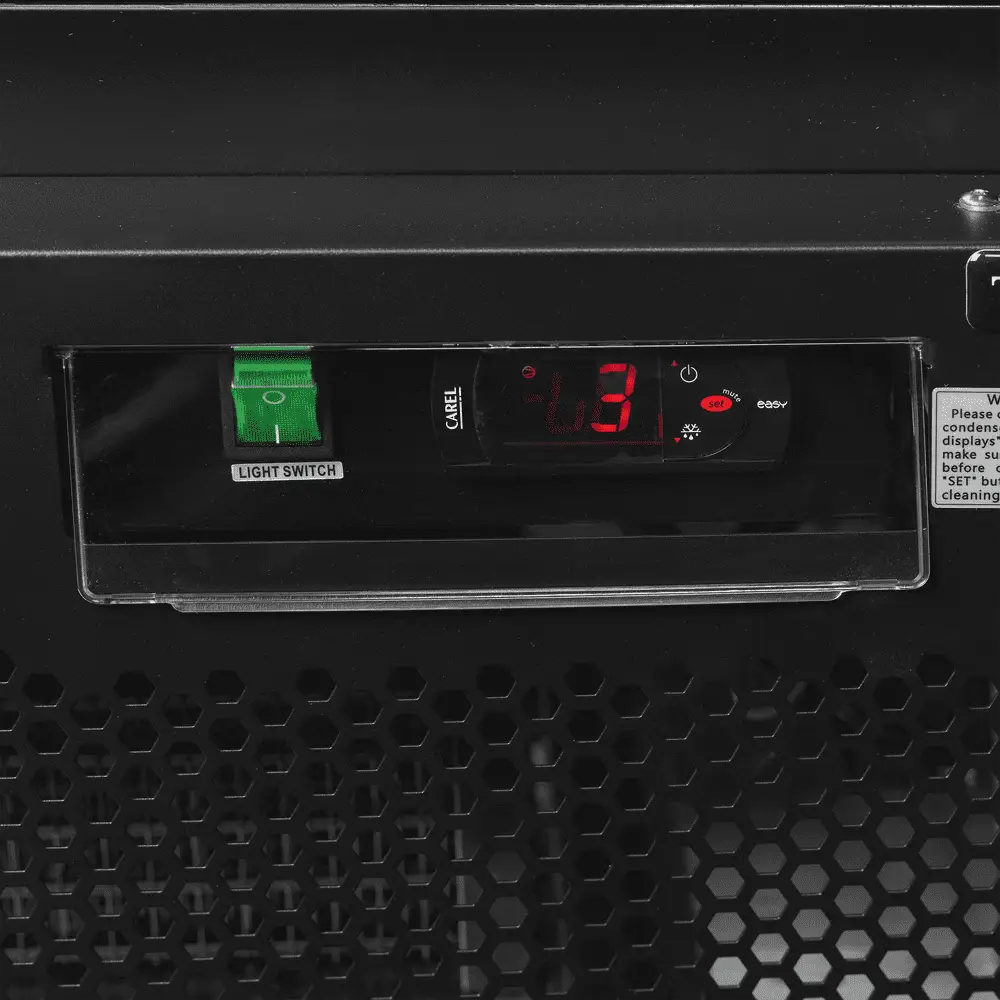

  • Digital controller and temperature display
  • Freezer Option Available

From £2,215.00 +vat

RRP: £3,204.00
- +
Energy Arrow

Brand:

SKU: 54348

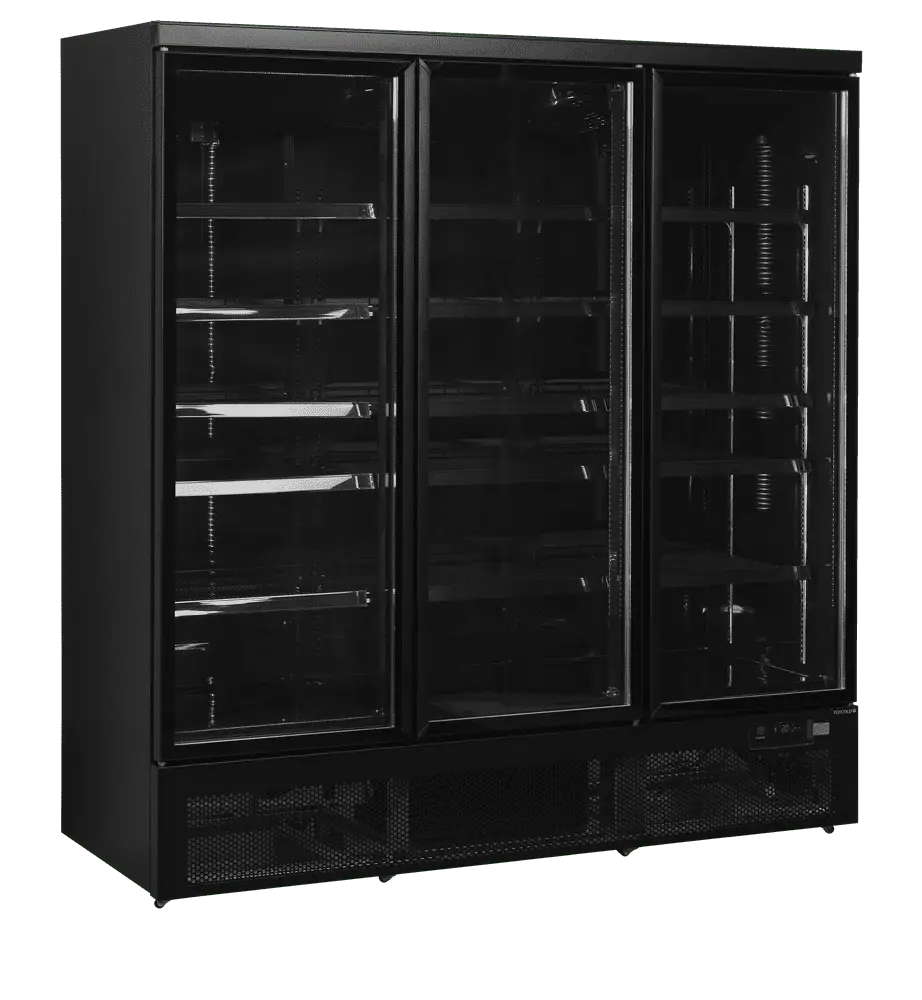

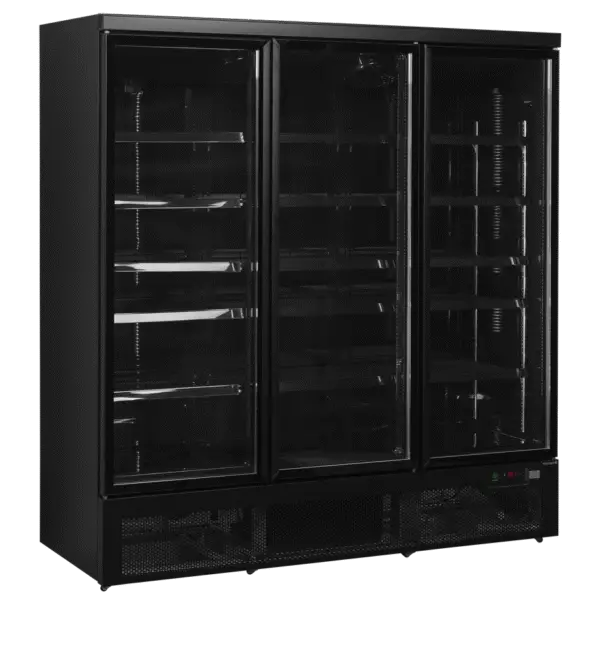

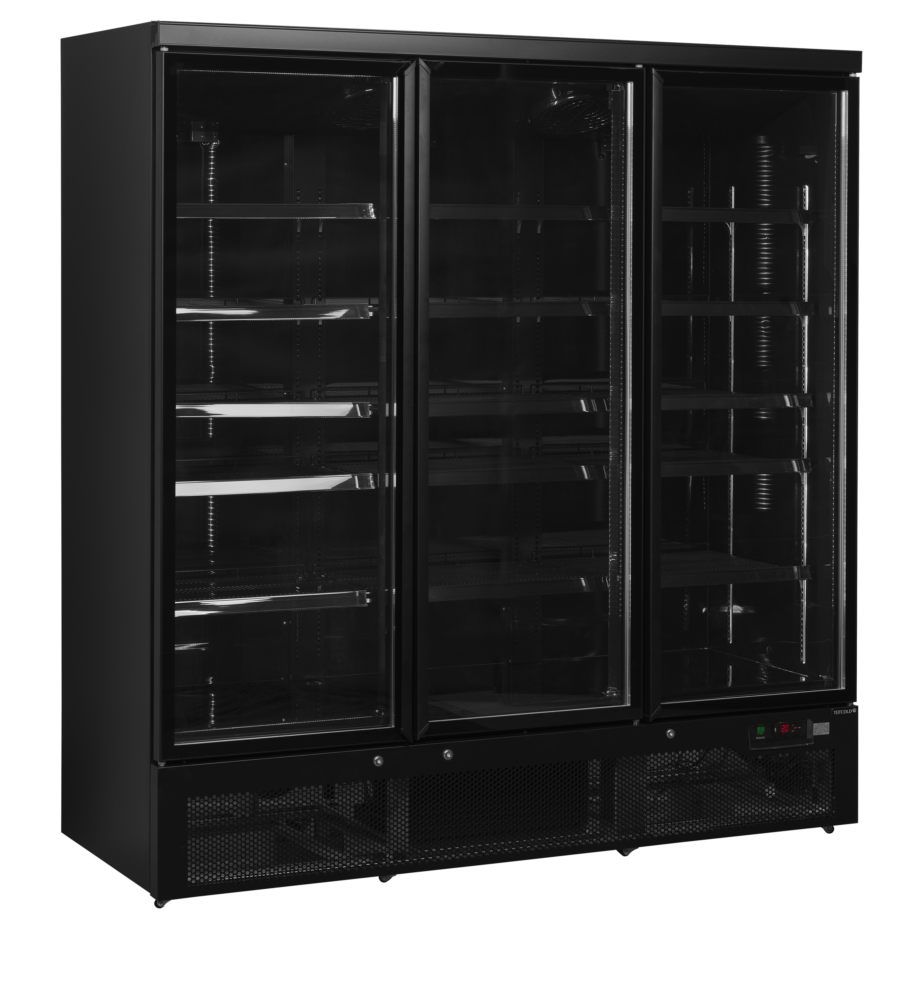

TEFCOLD Atom Maxi C3DBB Glass Door Merchandiser

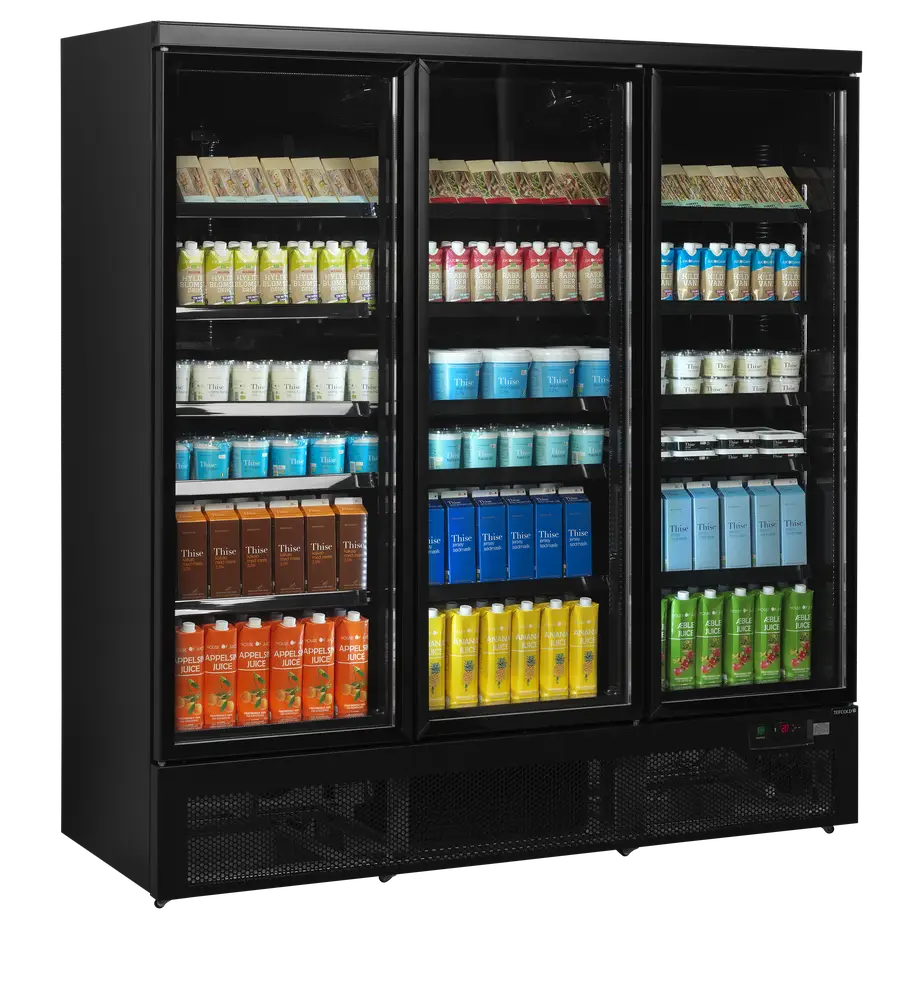

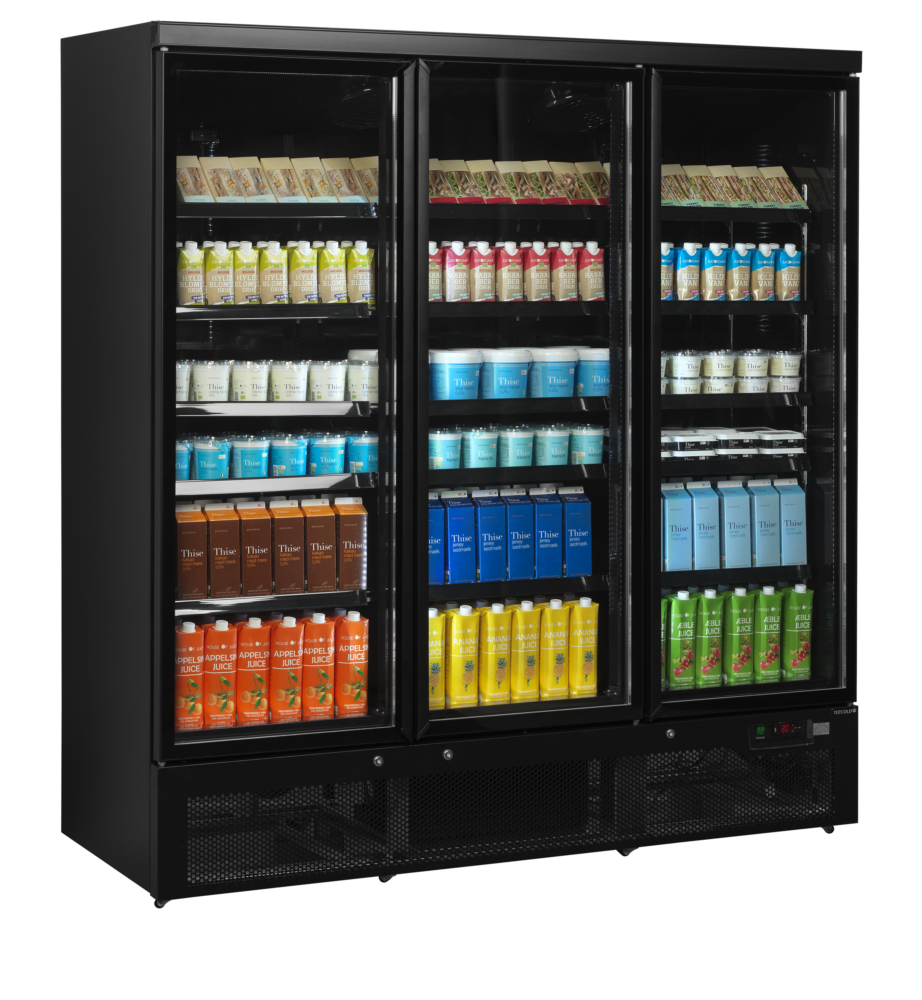

TEFCOLD Atom Maxi C3DBB Glass Door Merchandiser - Image 2
TEFCOLD Atom Maxi C3DBB Glass Door Merchandiser - Image 3

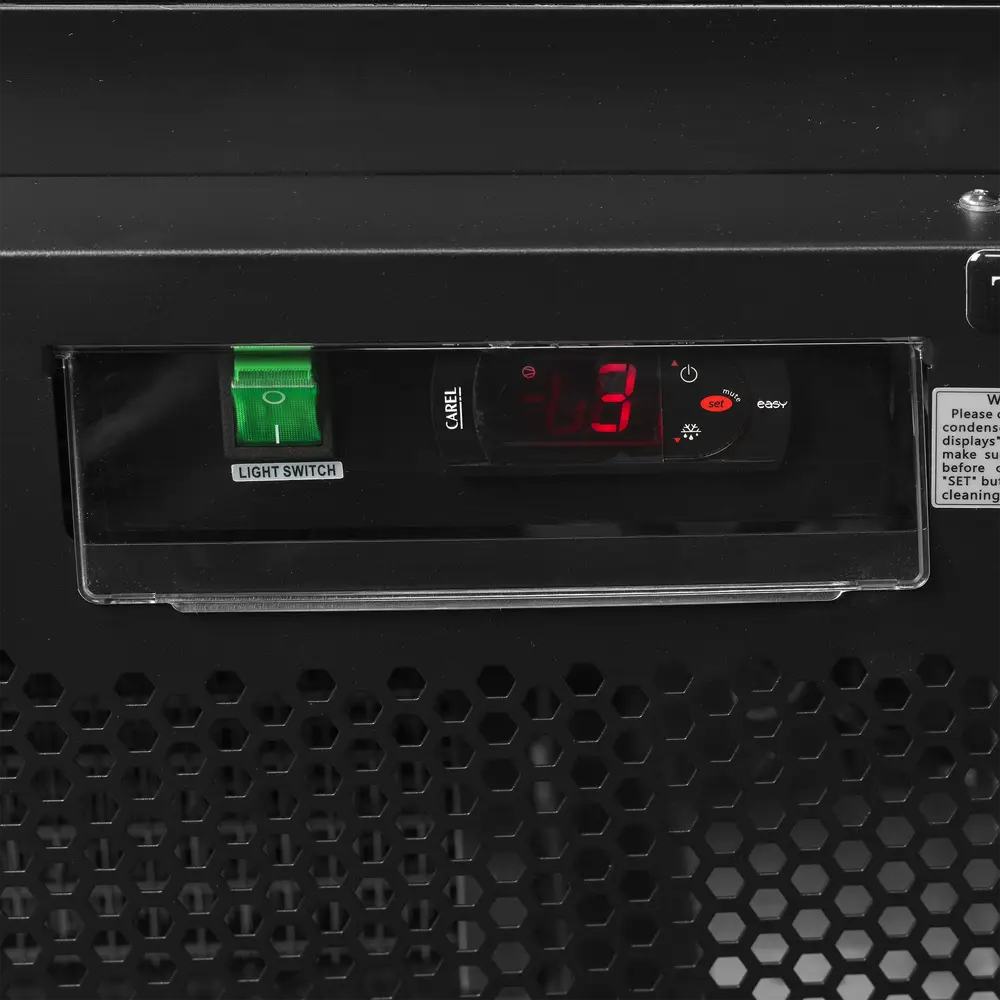

TEFCOLD Atom Maxi C3DBB Glass Door Merchandiser - Image 4

3 door chiller, black

The Atom Maxi range of glass door chillers is available in 1, 2 or 3 door options. Edge-to-edge “frameless” self-closing glass doors together with excellent storage capacity make it ideal for all types of frozen food displays. The canopy-less design makes it a favourite choice for shopfitters who use it in convenience stores, delis and butchers where a frozen selection gives customers extra choice.

Product description

Downloads

Spare Parts List
User Manual
Data Sheet

Measures and Content

Cans 330 ml: 1750 pcs pcs
Cans 500 ml: 1050 pcs pcs
Bottles 330 ml: 980 pcs pcs
Temperature Range: +1 to +10 °C
Climate Class: 3
Gross / Net Weight: 235 / 207.5 kg
Gross / Net Volume: 1664 / 1264 l
Max Ambient: 25°C at 60% RH
Total Display Area: 2.38 m² m²

Dimensions

Internal Dimension (WxDxH): 1790 x 595 x 1568 mm
External Dimension (WxDxH): 1880 x 710 x 2003 mm
Packed Dimension (WxDxH): 1905 x 760 x 2090 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic-Off Cycle
Refrigerant: R290
Refrigerant Charge: 130 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 5.41 kWh/24h
Annual Energy Consumption: 1975 kWh/year m³
Input Power: 700 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 65 dB(A)

Design and Material

Door Reversible: No
Shelf Color: Black
Shelf Dimensions: 566 x 480 mm ; 624 x 480 mm
Max load on Shelves: 135 kg/m²
Castors: 6 castors
Exterior Finish: Black RAL9005
Interior Finish: Black RAL9005
Interior Light: LED
If you have any questions about the TEFCOLD Atom Maxi C3DBB Glass Door Merchandiser then please get in touch.
