TEFCOLD View HC Chiller / Freezer

Product description

  • Great product visibility
  • Easily switchable between cooler and freezer
  • Energy saving variable speed compressor
  • Front to back sliding lids for easy access
  • Triple glazed insulated glass on all 3 sides
  • LED interior light
  • Digital controller and temperature display
  • Adjustable false base

From £3,074.00 +vat

RRP: £4,448.00
- +
Energy Arrow

Brand:

SKU: 51580

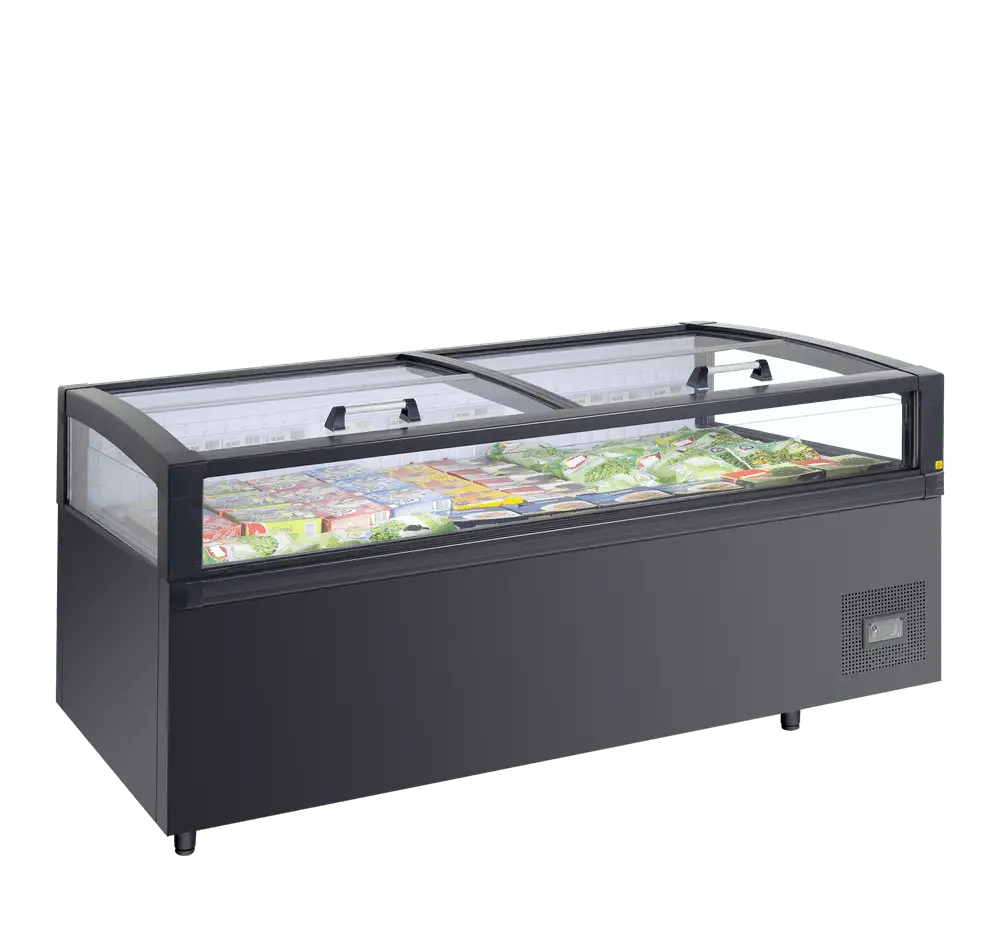

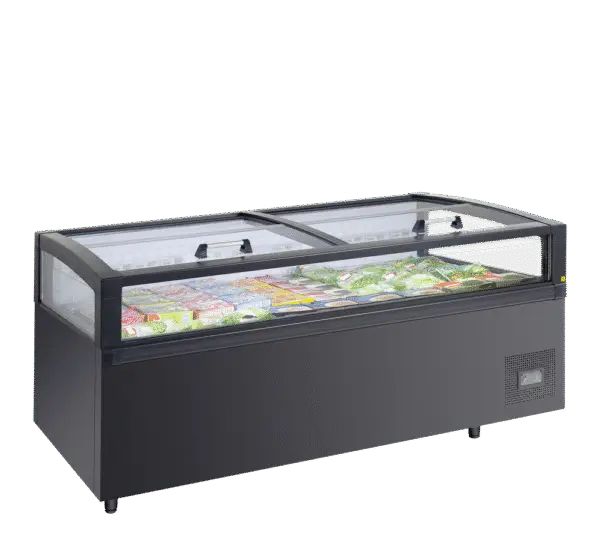

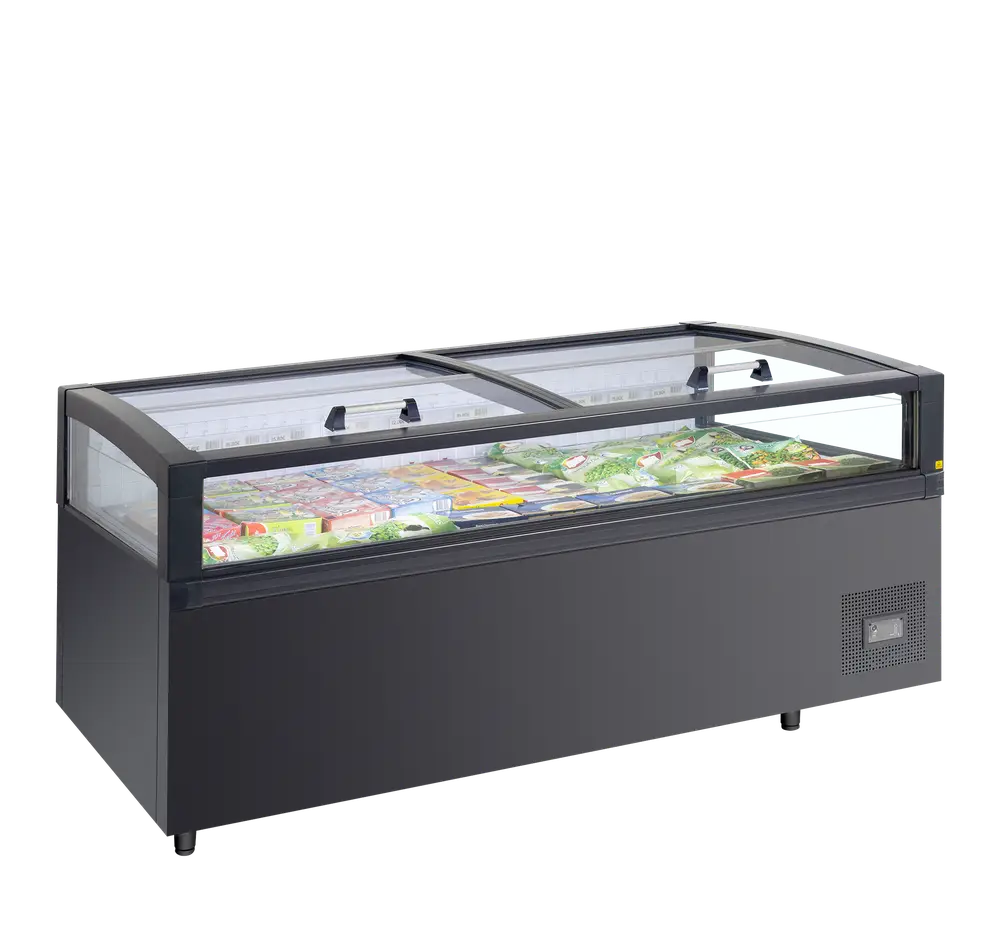

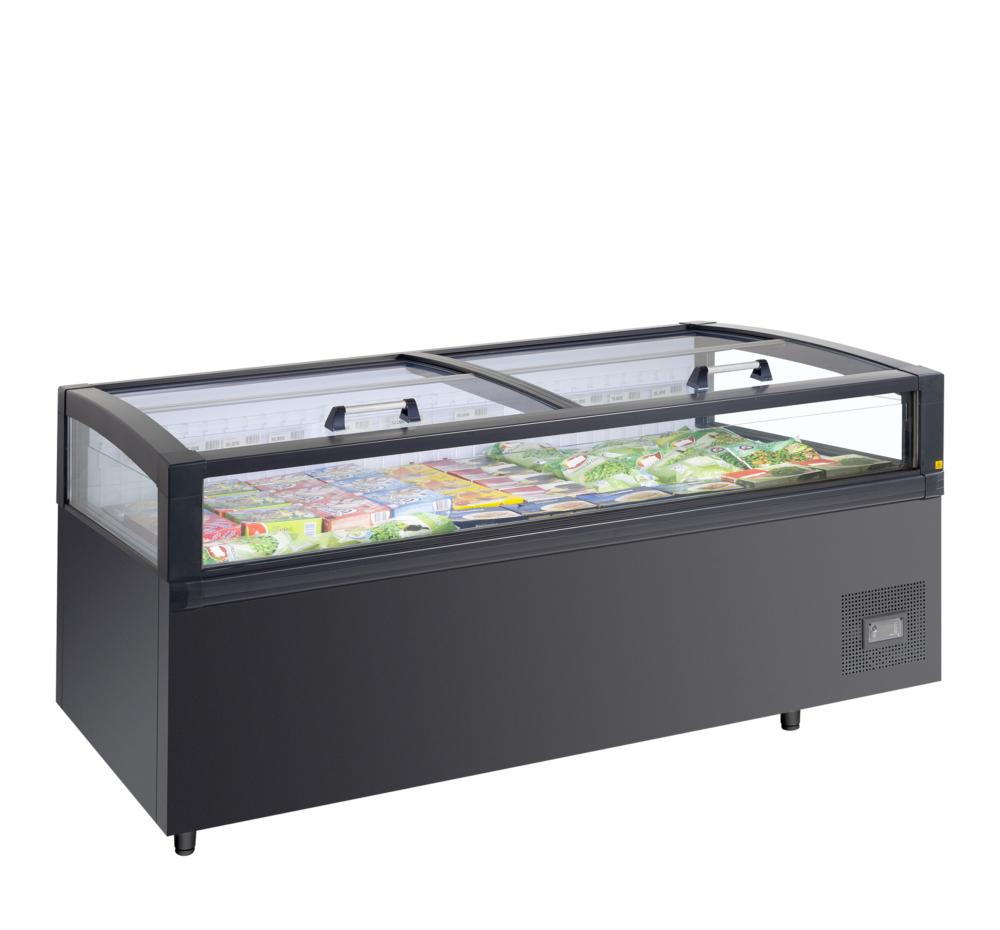

TEFCOLD View HC Chiller / Freezer

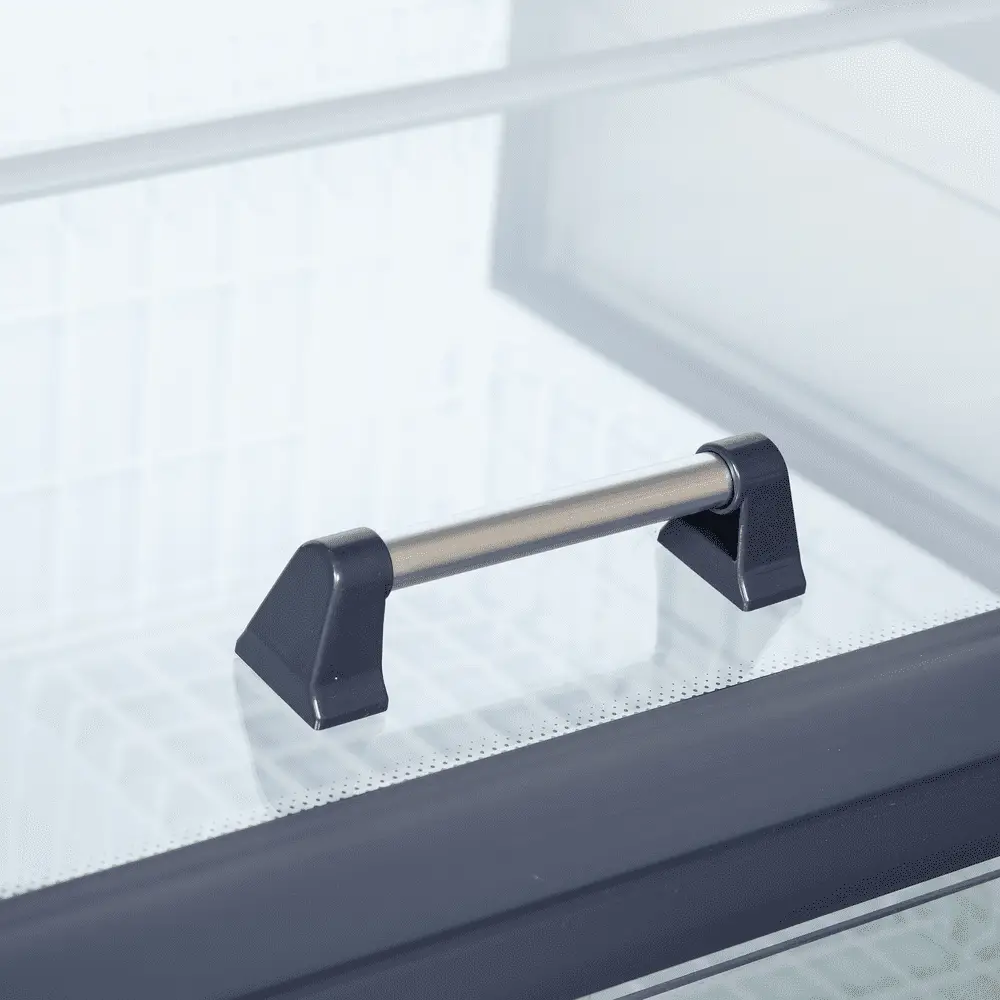

TEFCOLD View HC Chiller / Freezer - Image 2

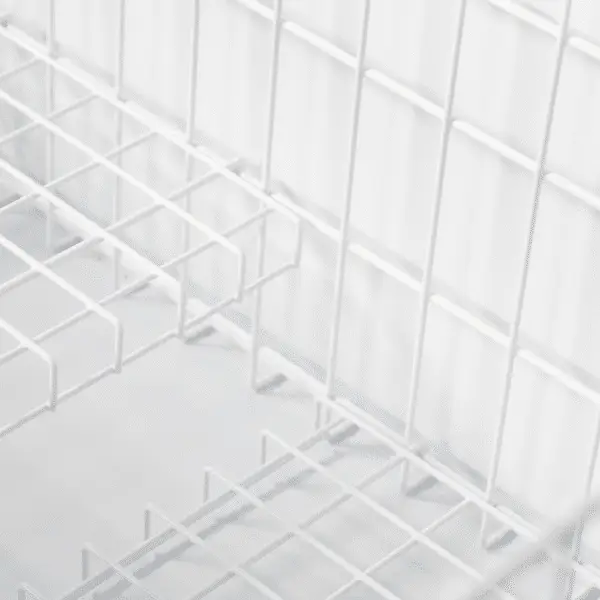

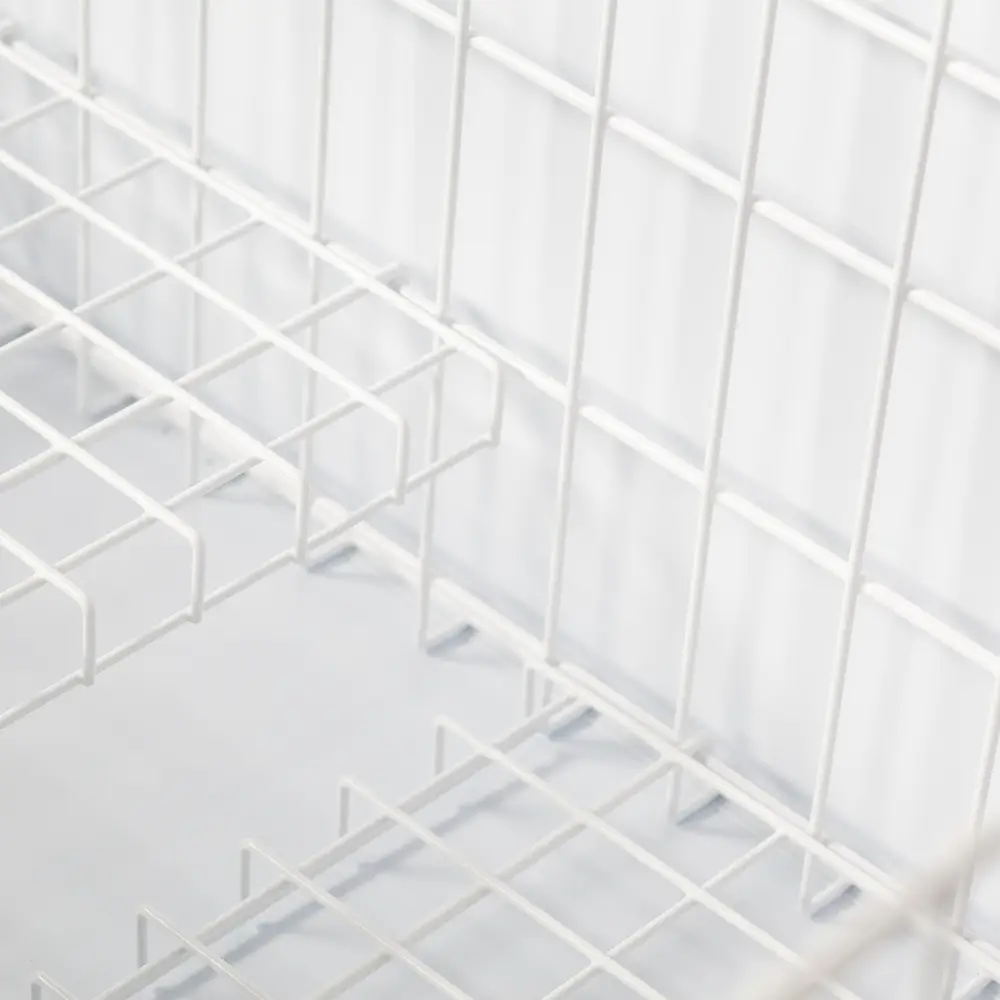

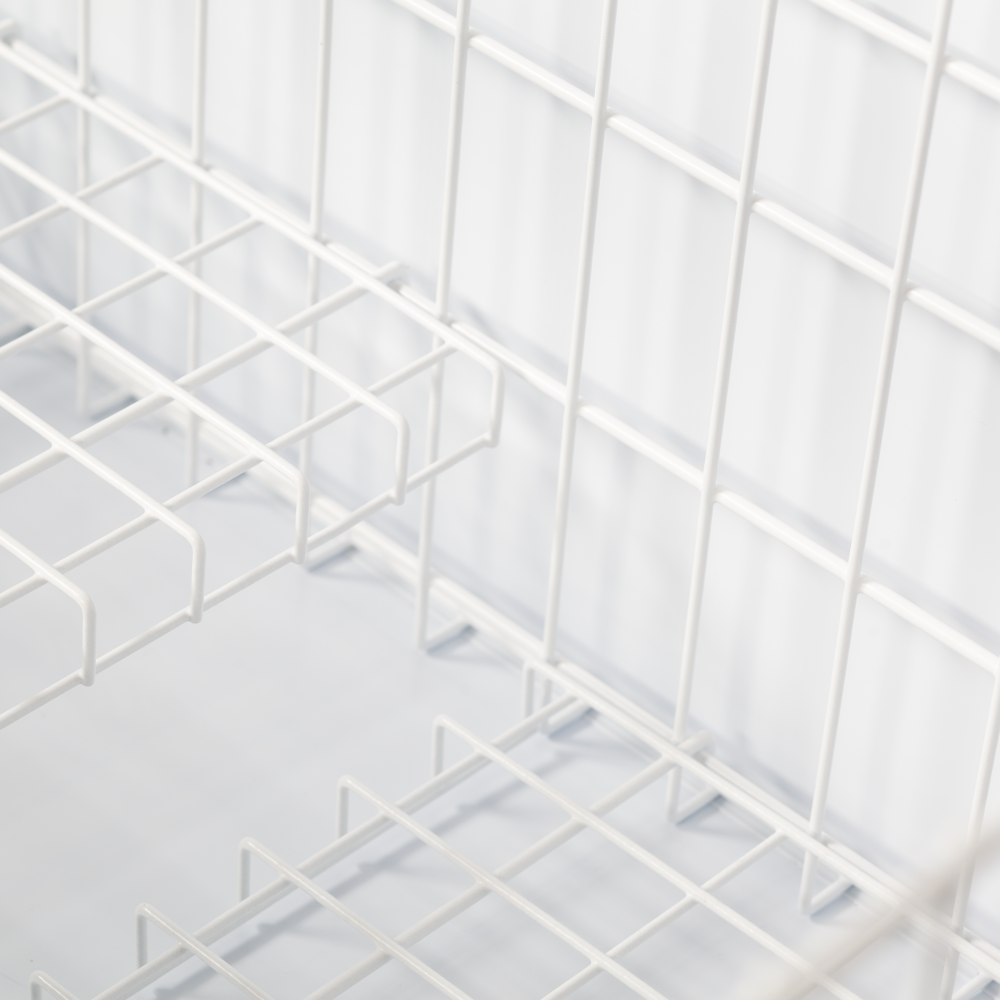

TEFCOLD View HC Chiller / Freezer - Image 3

Super market display freezer headcase

The VIEW combines a super market chiller/freezer’s versatility with modern design aesthetics. Enhanced product display is realized through three glass-sided walls and sliding lids atop. Effortlessly changes between chilling and freezing modes; select your desired temperature on the digital controller.

Product description

Downloads

Spare Parts List
User Manual
Data Sheet

Measures and Content

Temperature Range: -22 to +10 °C
Climate Class: 3
Gross / Net Weight: 210 / 166 kg
Gross / Net Volume: 995 / 613 l
Max Ambient: 30°C 55% RH
Total Display Area: 1.5 m² m²

Dimensions

Internal Dimension (WxDxH): 1798 x 820 x 880 mm
External Dimension (WxDxH): 1983 x 980 x 970 mm
Packed Dimension (WxDxH): 2060 x 1066 x 1028 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Static
Type of Defrost: Automatic, hot gas
Refrigerant: R290
Refrigerant Charge: 113 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 9.64 kWh/24h
Annual Energy Consumption: 3518 kWh/year m³
Input Power: 520 W
Voltage / Frequency: 220-240/50-60 V/Hz
Noise Level: 52 dB(A)

Design and Material

Divider System: Yes
Number of dividers: 2 pcs
Feet / Legs: 4 adjustable feet
Exterior Finish: Anthracite RAL7016
Interior Finish: Anthracite RAL7016
Interior Light: LED
Lock: No
If you have any questions about the TEFCOLD View HC Chiller / Freezer then please get in touch.
