Elcold FOCUS 73 Sliding Curved Glass Lid Chest Freezer

Product description

  • Frameless curved sliding lids
  • Static cooling
  • Castors
  • Defrost drain
  • Fan assisted condenser for energy efficiency
  • Red and blue trim options to order

From £623.00 +vat

RRP: £901.00
- +
Energy Arrow

Brand:

SKU: 33526

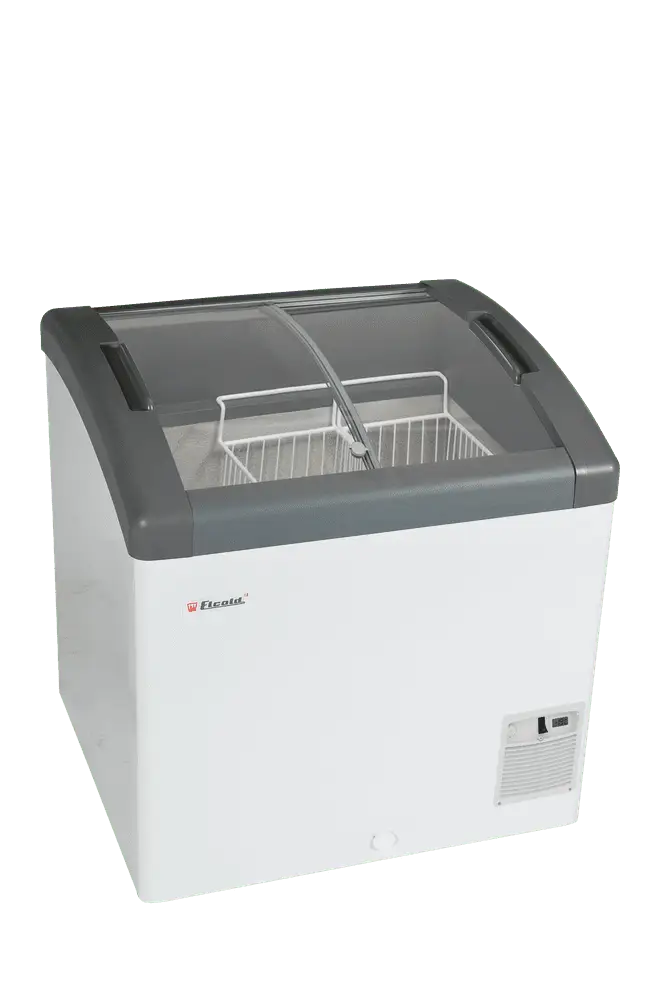

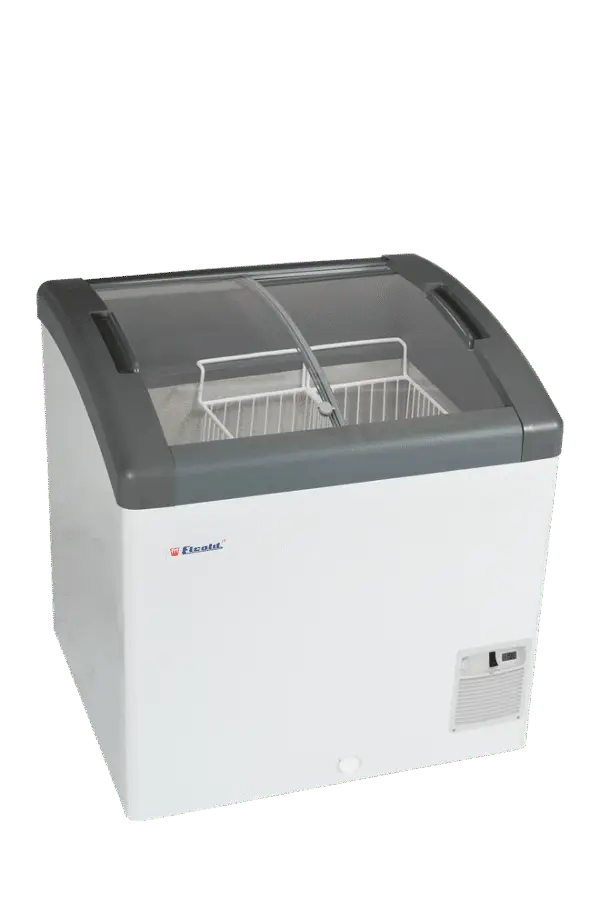

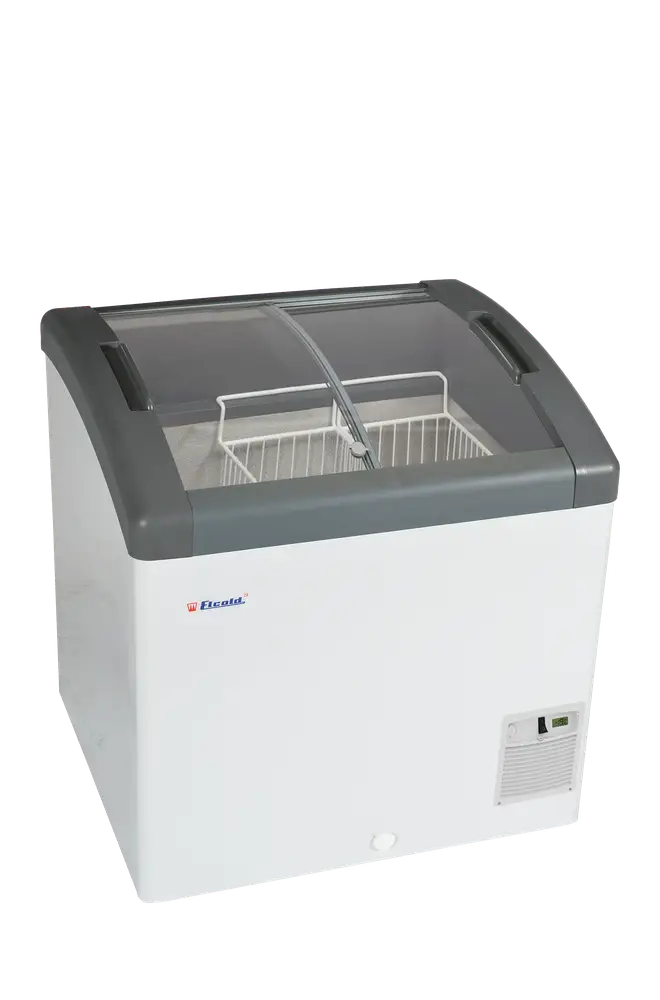

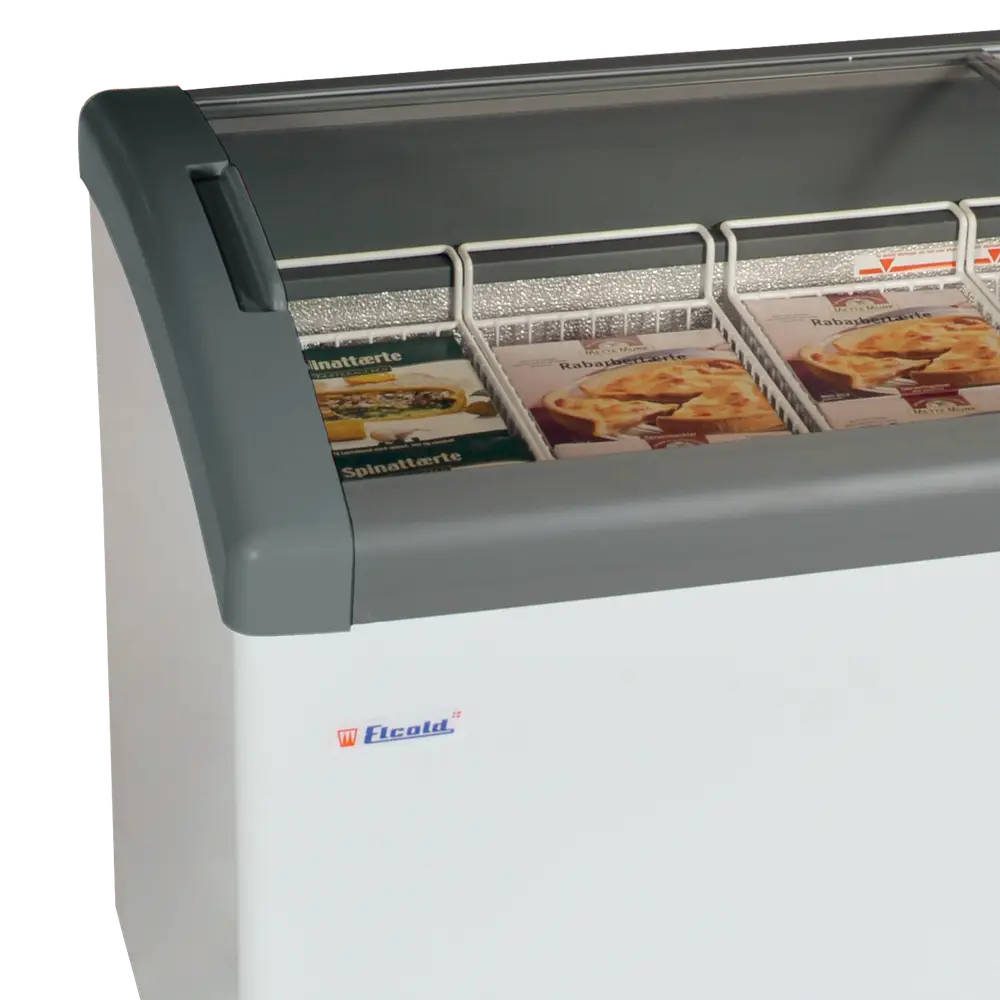

Elcold FOCUS 73 Sliding Curved Glass Lid Chest Freezer

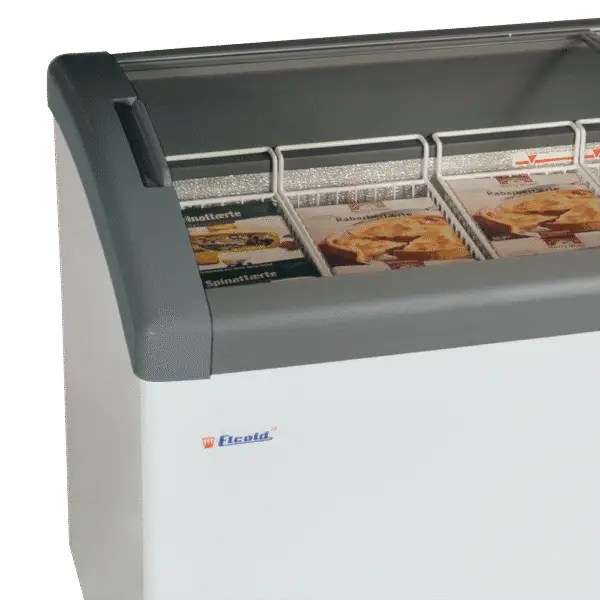

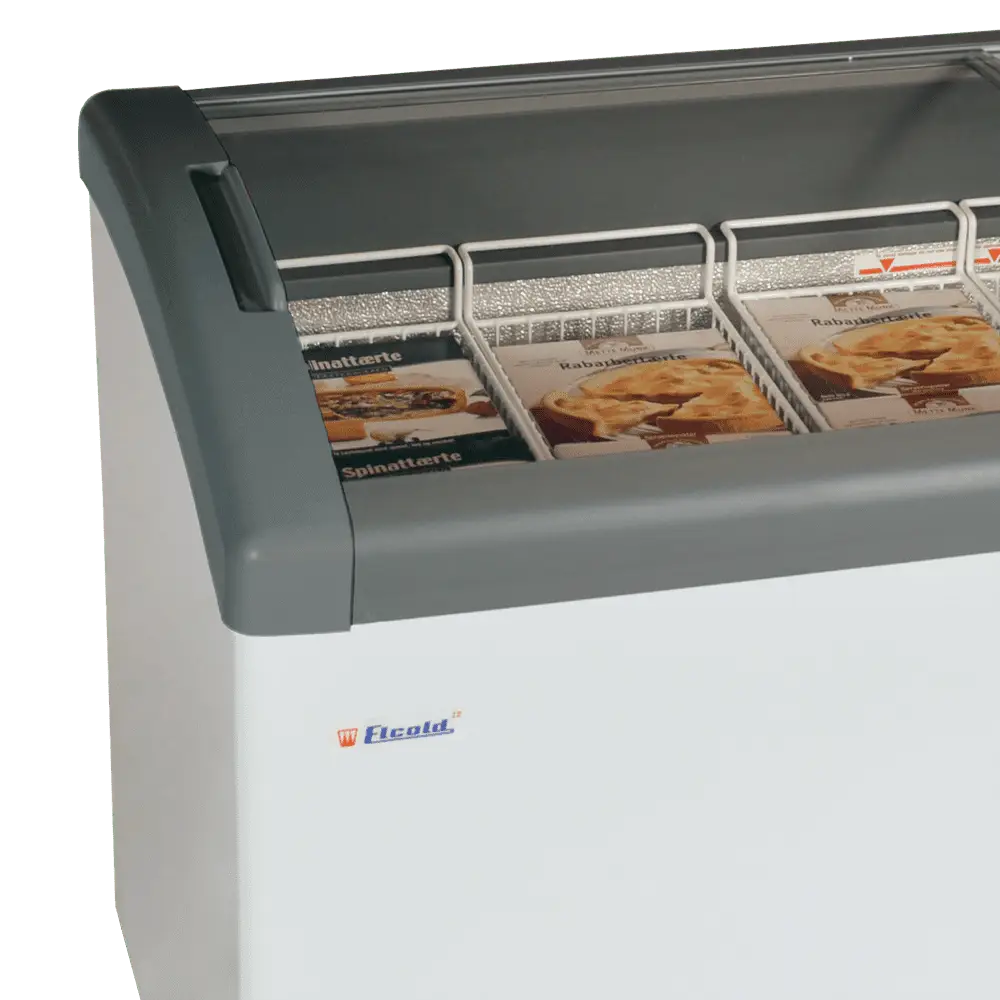

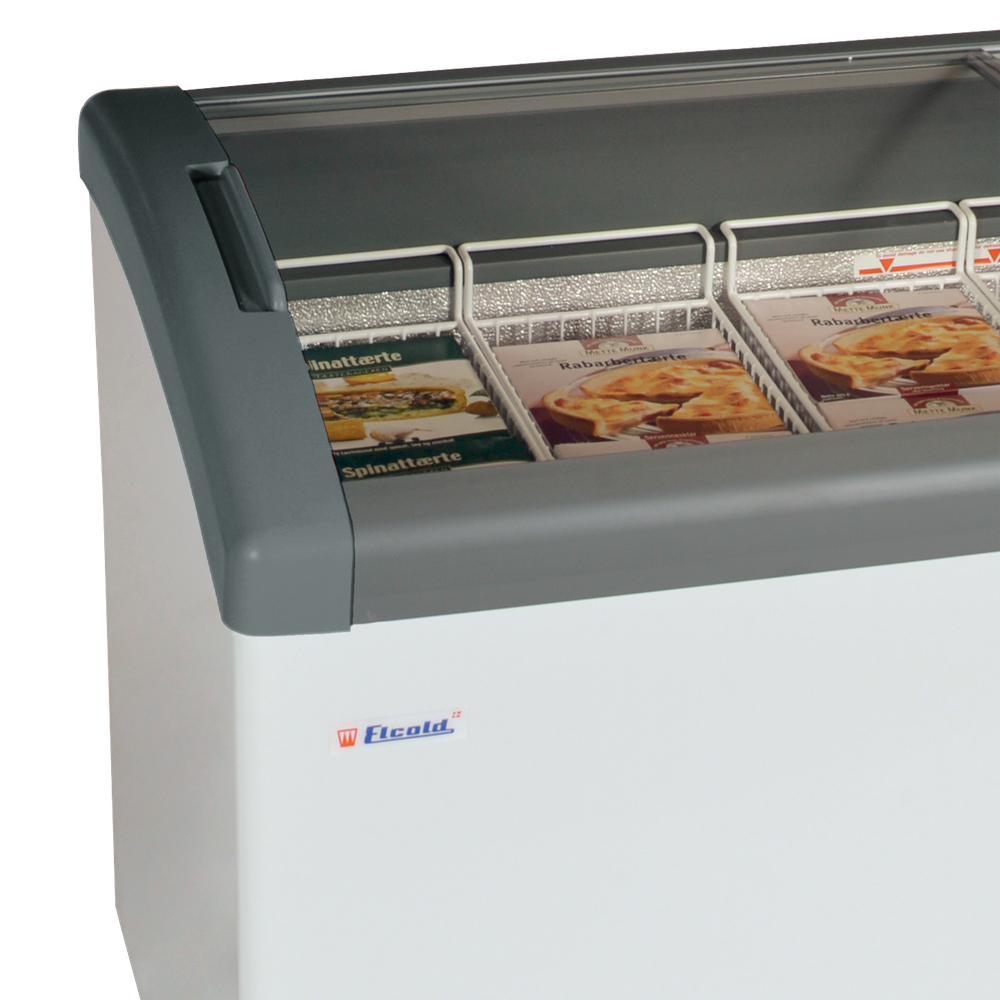

Elcold FOCUS 73 Sliding Curved Glass Lid Chest Freezer - Image 2

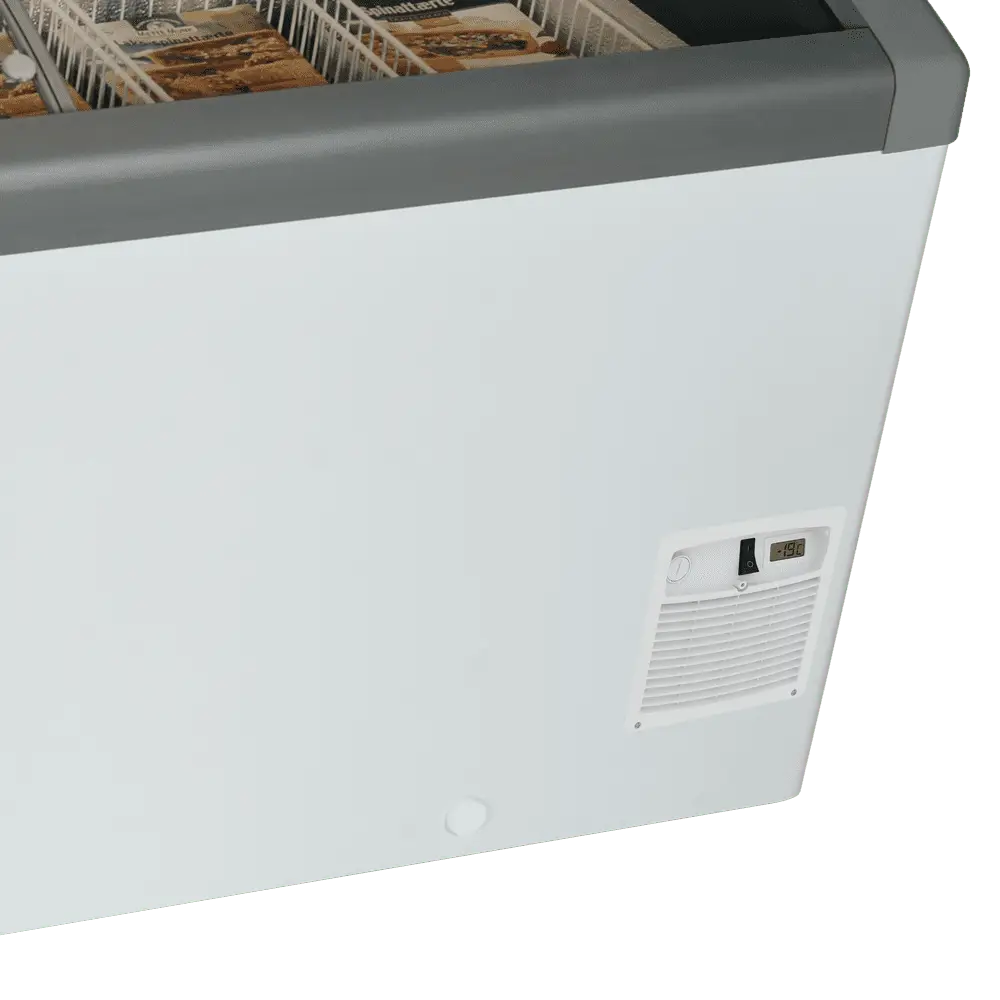

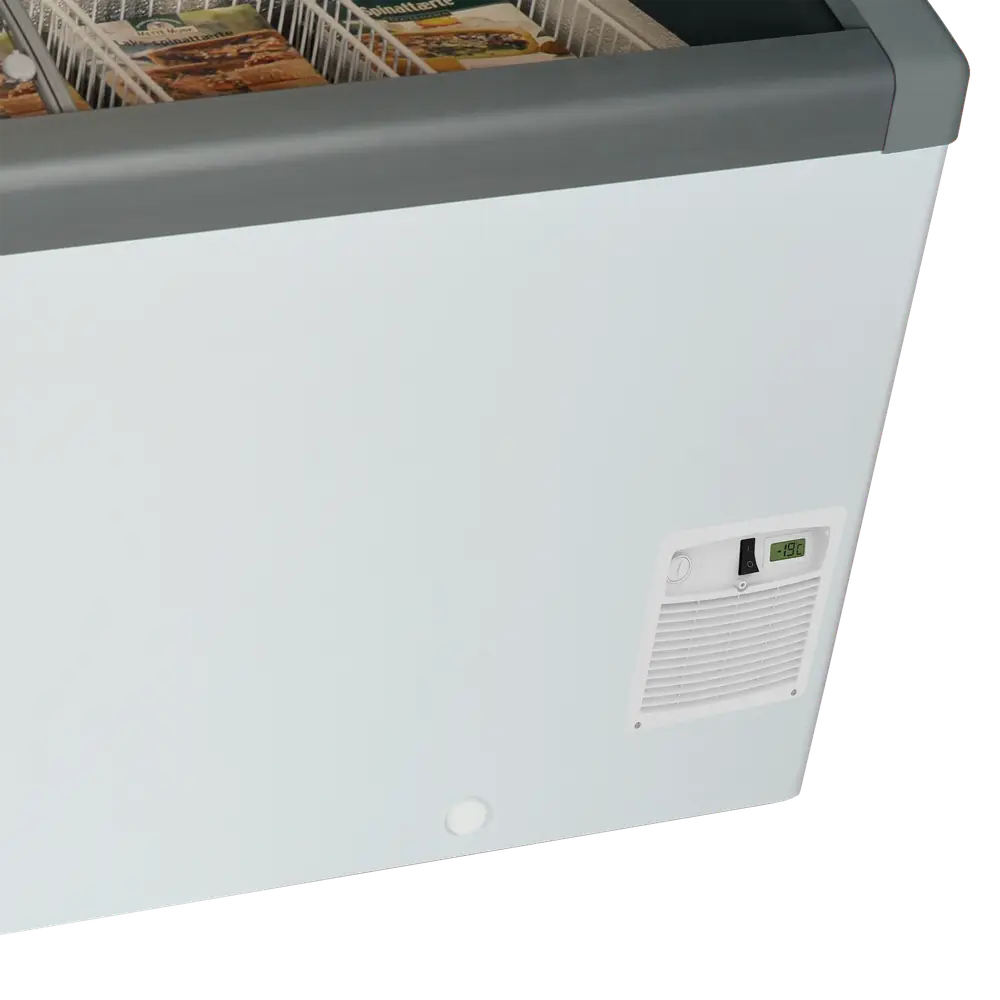

Elcold FOCUS 73 Sliding Curved Glass Lid Chest Freezer - Image 3

Sliding Curved Glass Lid Chest Freezer

Elcold’s premium chest freezer, the Focus, is a top choice for leading ice cream and frozen food companies due to its stunning design, energy efficiency, and durability. The frameless curved sliding lids and internal LED lighting offer an excellent display, and castors come as standard. This high-quality chest freezer is one of the best on the market, supplied as standard with grey trim, with the option to order in red or blue trim.

Product description

Downloads

Spare Parts List
User Manual
Data Sheet

Measures and Content

Temperature Range: -23 to -16 °C
Climate Class: 4
Gross / Net Weight: 47 / 44 kg
Gross / Net Volume: 161 / 113 l
Max Ambient: 30°C at 55% RH

Dimensions

Internal Dimension (WxDxH): 570 x 500 x 670 mm
External Dimension (WxDxH): 726 x 656 x 850 mm
Packed Dimension (WxDxH): 765 x 760 x 880 mm

Cooling and Functions

Type of Controller: Mechanical
Type of Cooling: Static
Type of Defrost: Manual
Refrigerant: R600a
Refrigerant Charge: 55 g
Thermometer: Factory Option

Power and Consumption

Energy Consumption: 1.82 kWh/24h
Annual Energy Consumption: 665 kWh/year m³
Input Power: 141 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 40 dB(A)

Design and Material

Castors: Castors
Exterior Finish: White, Grey
Interior Finish: White, Grey
Interior Light: LED as option
Lock: Yes
If you have any questions about the Elcold FOCUS 73 Sliding Curved Glass Lid Chest Freezer then please get in touch.
