TEFCOLD Atom Maxi F3DBB Display Freezer

Product description

  • Perfect display for frozen foods
  • Black interior and exterior
  • Low energy consumption
  • Self-closing heated glass doors
  • Triple glazed insulated glass
  • Adjustable shelves (split level)
  • Ventilated cooling

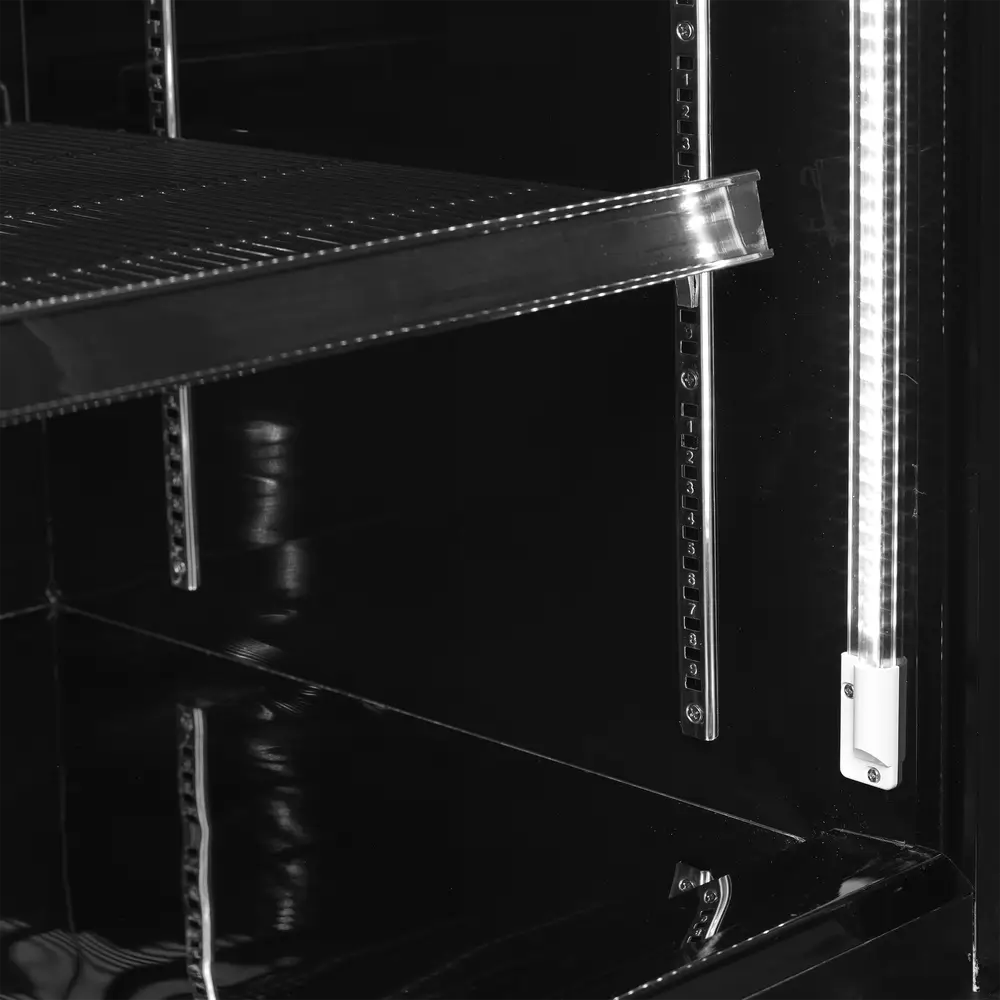

  • Internal vertical LED light
  • Stainless steel base with mirror effect

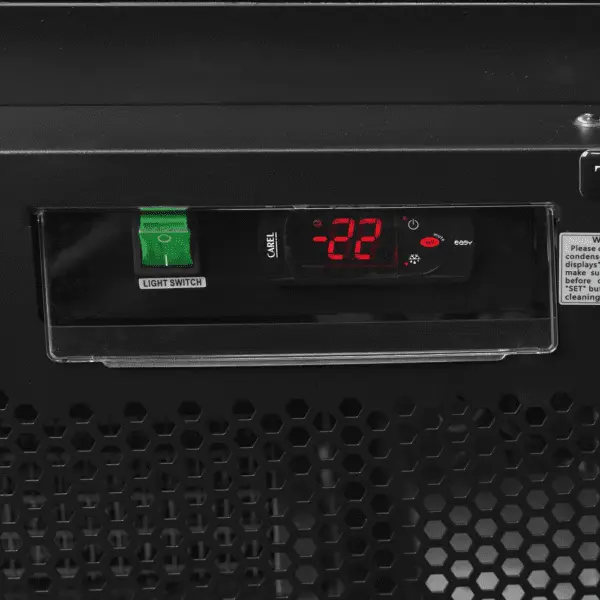

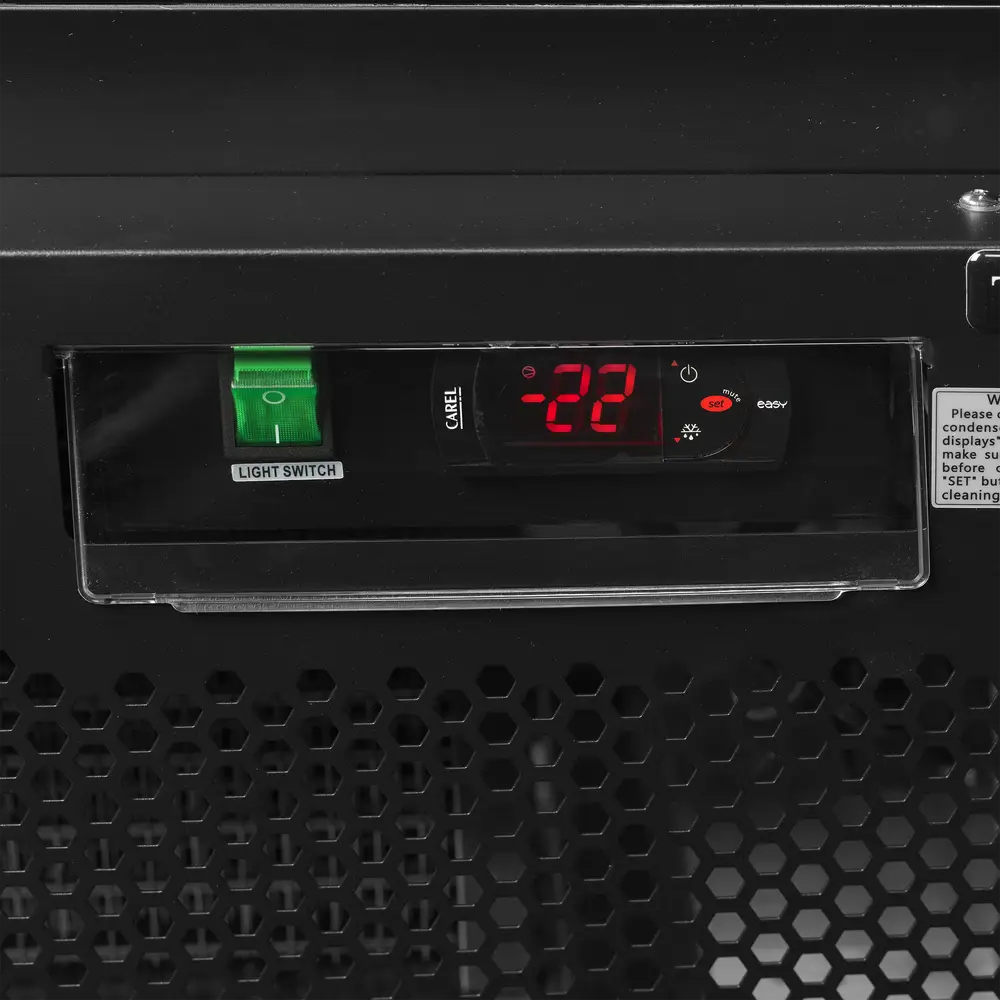

  • Digital controller and temperature display
  • Chiller Option Available

From £2,953.00 +vat

RRP: £4,272.00
- +
Energy Arrow

Brand:

SKU: 54345

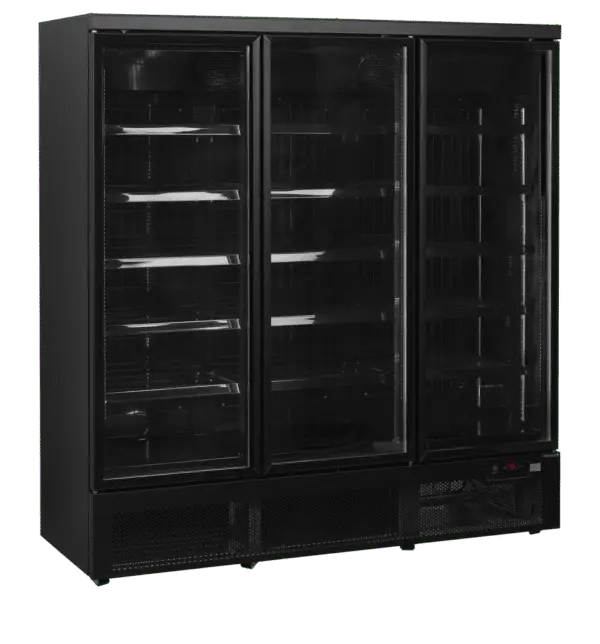

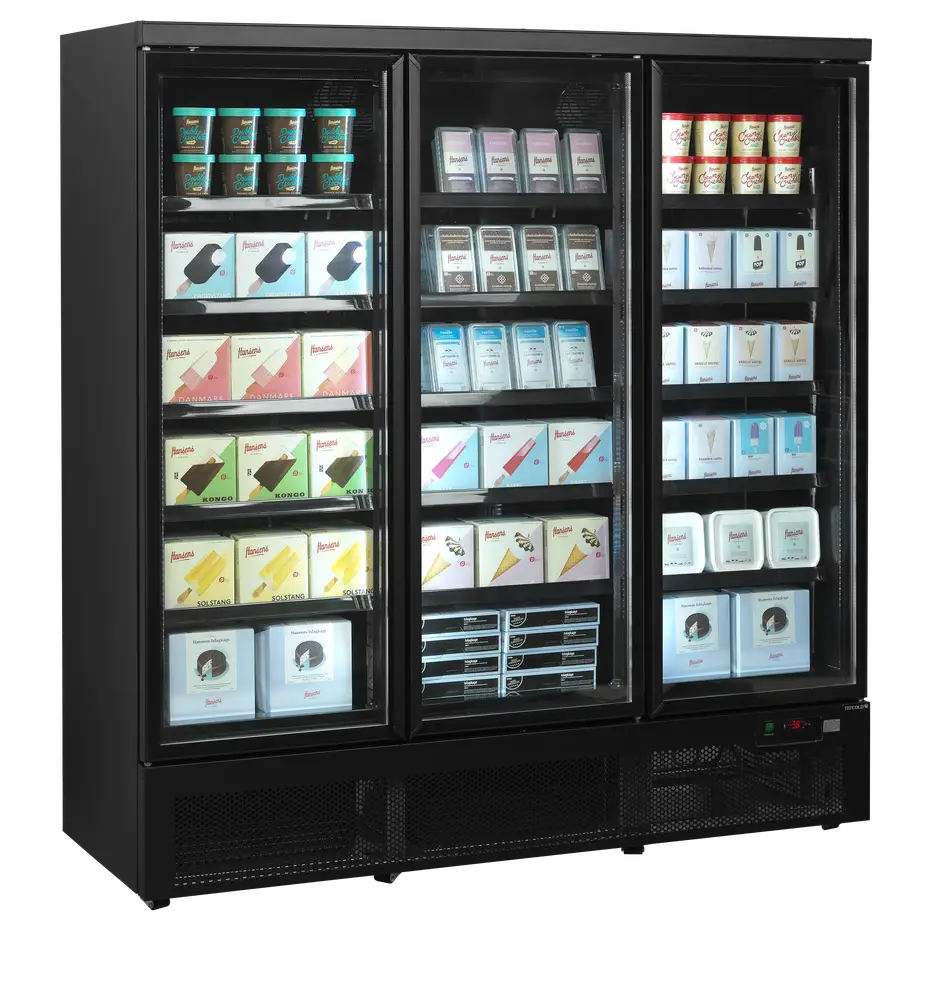

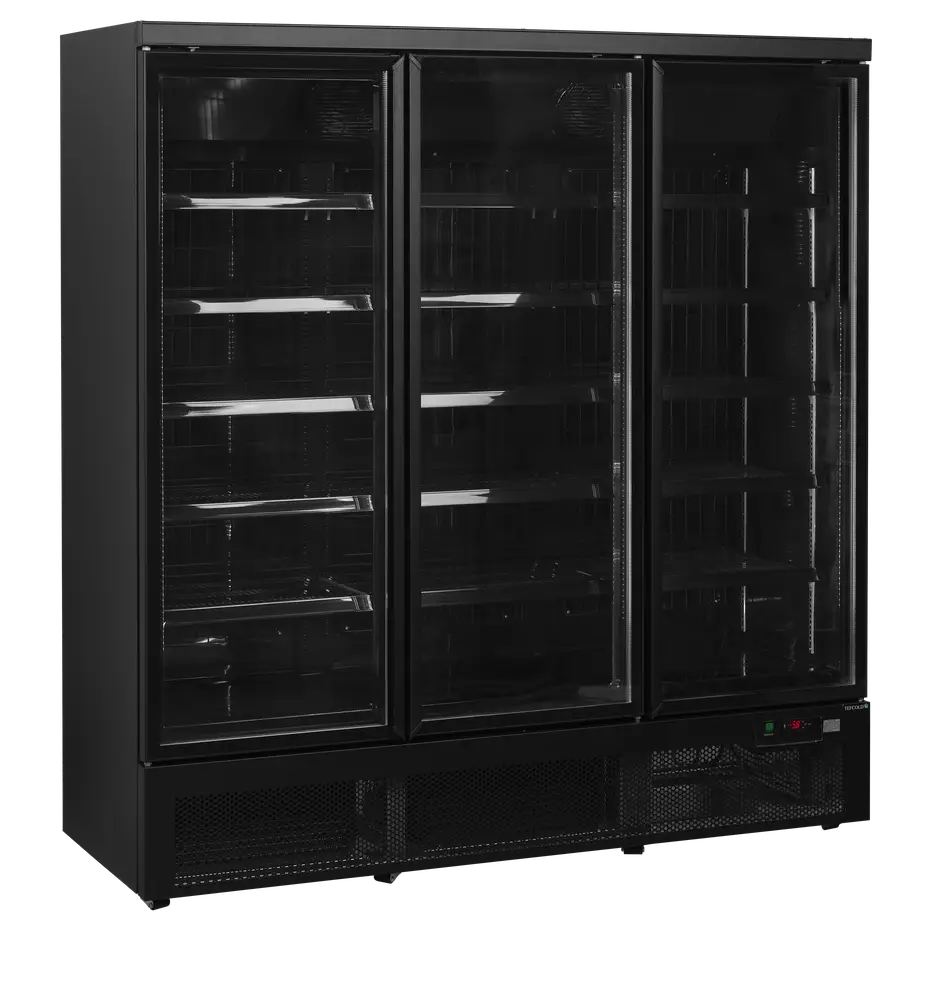

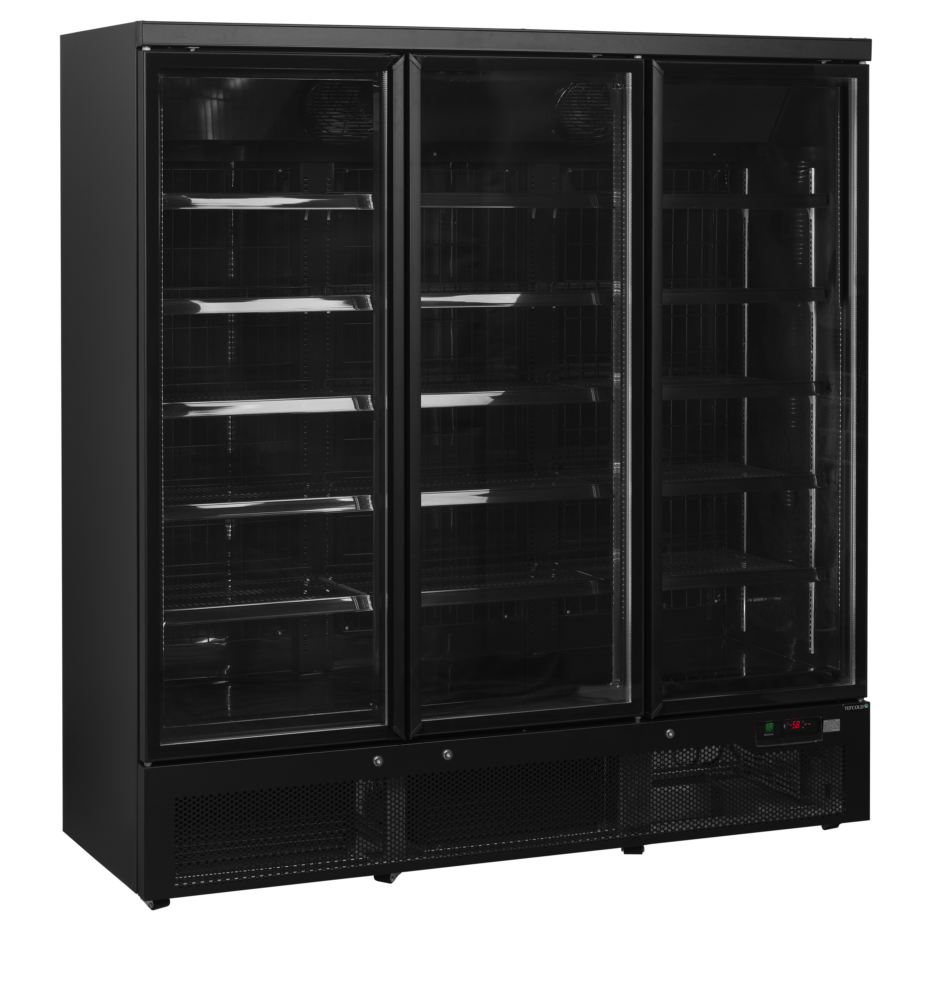

TEFCOLD Atom Maxi F3DBB Display Freezer

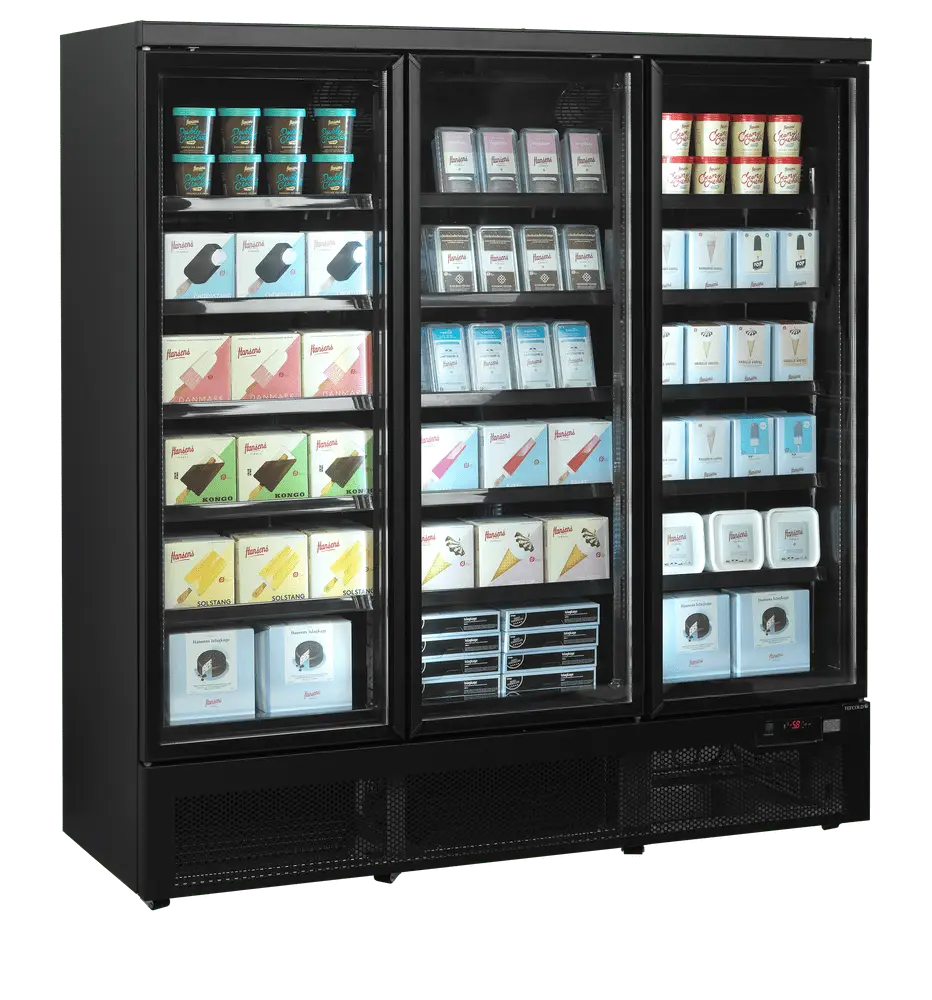

TEFCOLD Atom Maxi F3DBB Display Freezer - Image 2

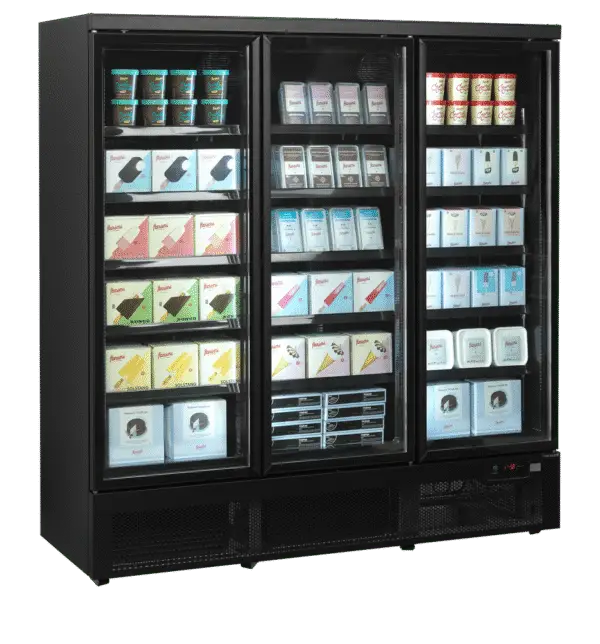

TEFCOLD Atom Maxi F3DBB Display Freezer - Image 3

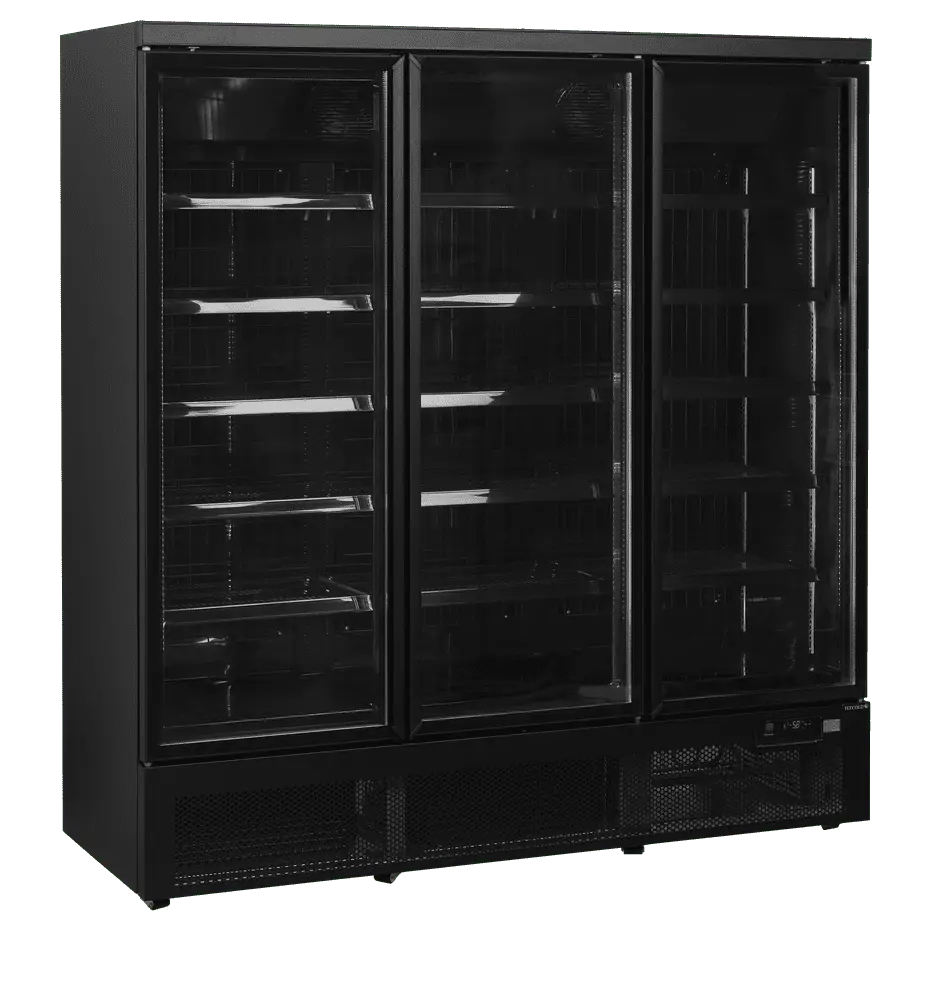

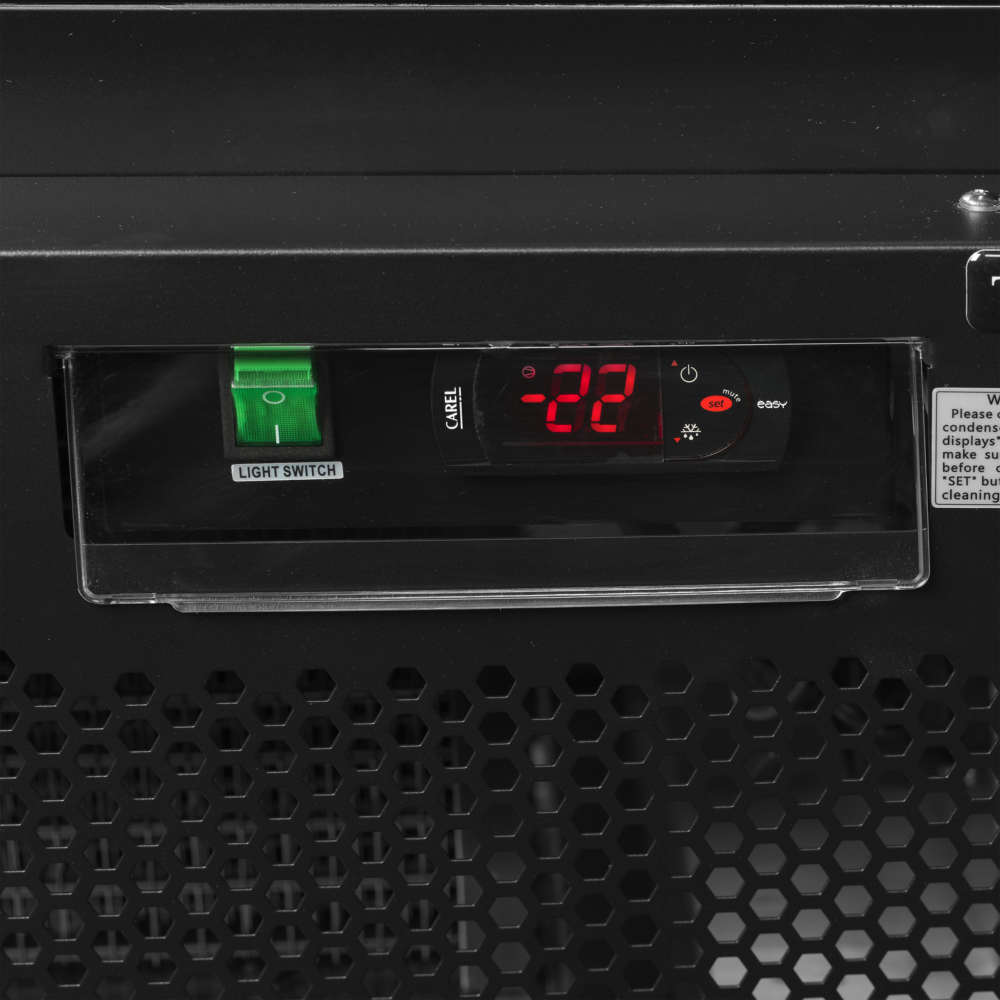

TEFCOLD Atom Maxi F3DBB Display Freezer - Image 4

3 door display freezer, black

The Atom Maxi range of glass door freezers is available in 1, 2 or 3 door options. Edge-to-edge “frameless” self-closing glass doors together with excellent storage capacity make it ideal for all types of frozen food display. The canopy-less design makes it a favourite choice for shopfitters who use it in convenience stores, delis and butchers where a frozen selection gives customers extra choice.

Product description

Downloads

Spare Parts List
User Manual
Data Sheet

Measures and Content

Temperature Range: -18 to -22 °C
Climate Class: 3
Gross / Net Weight: 355 / 305 kg
Gross / Net Volume: 1563 / 1090 l
Max Ambient: 25°C at 60% RH
Total Display Area: 2.09 m² m²

Dimensions

Internal Dimension (WxDxH): 1760 x 580 x 1538 mm
External Dimension (WxDxH): 1880 x 760 x 2003 mm
Packed Dimension (WxDxH): 1905 x 780 x 2090 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic
Refrigerant: R290
Refrigerant Charge: 2 x 95 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 23.84 kWh/24h
Annual Energy Consumption: 8702 kWh/year m³
Input Power: 1280 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 70 dB(A)

Design and Material

Door Reversible: No
Shelf Color: Black
Shelf Dimensions: 551 x 470 mm ; 624 x 470 mm
Max load on Shelves: 140 kg/m²
Castors: 6 castors
Exterior Finish: Black RAL9005
Interior Finish: Black RAL9005
Interior Light: LED
If you have any questions about the TEFCOLD Atom Maxi F3DBB Display Freezer then please get in touch.
